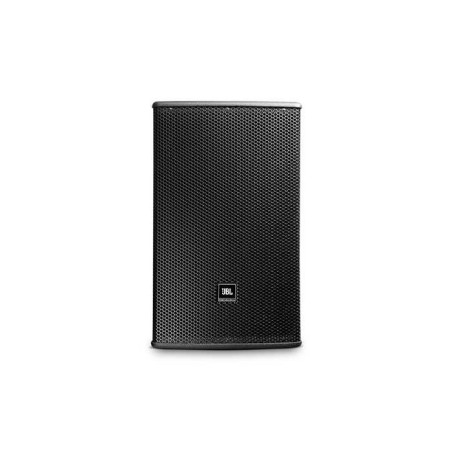

JBL AC566

JBL AC566

Compact 2-way full-range loudspeaker system, 12” LF transducer, 90° x 90° Waveguide with a 1" exit 1.5" diaphragm compression driver, dual Neutrik NL4 connectors plus screw terminals, Multiple attachment points, robust 15mm enclosure with black textured finish. Frequency range 63Hz - 20kHz, nominal impedance 8 Ohms, 121db max SPL, system sensitivity 97db.

Features

• Robust 15mm enclosure with black textured finish
• 384 mm (15 in) LF transducer
• 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple attachment points for ultimate flexibility

Applications

• Performing Spaces
• Clubs & Bars
• Houses of Worship
• Multi Media Spaces
• Retail & Hospitality Spaces
• Presentation Suites
• Educational Facilities

Specifications

Frequency Range (-10 dB) - 60 Hz - 20 kHz
Frequency Response (±3 dB) - 75 Hz - 18 kHz
System Sensitivity (1w @ 1m) - 98 dB
Nominal Impedance - 8 ohms
Maximum SPL (1m) - 122 dB (128 dB peak)
Power Rating
(Continuous/Program/Peak) - 250 W/500 W/1000 W
Coverage Pattern - 60° x 60° (H x V)
Crossover - 1.5 kHz
Low Frequency Driver - 1 x 15" woofer (P/N: 5053935), 384 mm (15 in) driver
                                    with 66 mm (2.5 in) voice-coil
High Frequency Driver - 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector - Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure - 15 mm multi-ply hardwood plywood
Grille - Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish - Textured black paint finish. White (-WH) available upon request. Not available with WRC &                 WRX finish.
Suspension / Mounting - 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-                                                 bracket and wall-mount bracket
Dimensions (H x W x D) - 680 mm x 420 mm x 445 mm
                                         26.7 in x 16.5 in x 17.5 in
Net Weight - 19.8 kg (43.6lbs)
