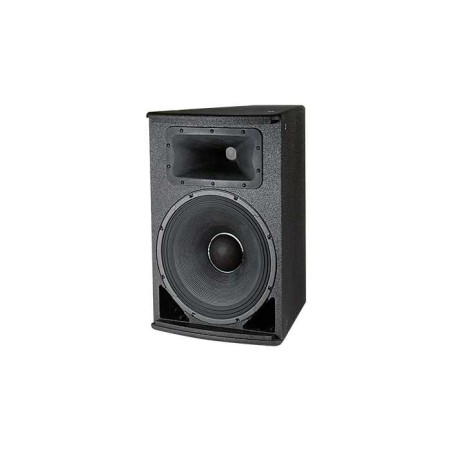

JBL AC2215/64

JBL AC2215/64

Compact 2-way full range loudspeaker system comprised of one 15” low frequency driver and one 1.5” exit/ 1.75” voice-coil compression driver. 50Hz-17kHz ±3dB. LF: 275W, HF, 50W (AES 2hr). Max SPL 127dB in passive mode, sensitivity 97dB SPL (1W, 1m). 60° x 40° coverage. Compact PT™ waveguide. Bi-amp/passive switchable. Optional U-bracket model MTU-2. Black or White. Also available with WRC Weather Resistant Protection or WRX Extreme Weather Protection.

Features

• PT Progressive Transition Waveguide for good pattern control with low distortion.
• Bi-Amp/Passive Switchable.
• Optional U-Bracket Model MTU-2.
• For fixed installation applications requiring a compact cabinet, such as small performing arts facilities,
  theatrical sound design, auditoriums, sports facilities, themed entertainment venues and in delay/fill locations of larger systems.

Specifications

Frequency Range - 42 Hz - 19 kHz (-10 dB)
Frequency Response - 50 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern - /64: 60°x 40°
                              /95: 90°x 50°
                              /00: 100°x 100°
Directivity Factor (Q) - 7.1
Directivity Index (DI) - 8.5 dB
Crossover Modes - Bi-amp/Passive switchable
Passive Crossover Slopes - 4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.2 kHz
Transducer Power Rating (AES) - LF: 275 W (1100 W peak), 2 hrs
                                                    250 W (1000 W peak), 100 hrs
                                                    HF: 30 W (120 W peak), 2 hrs
Long-Term System Power Rating (IEC) - Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL - Bi-amp mode:
                         LF: 120 dB-SPL cont avg (127 dB peak)
                         HF: 129 dB-SPL cont avg (135 dB peak)
                         Passive mode:
                         121 dB-SPL cont avg (127 dB peak)
System Sensitivity - Passive mode: 97 dB SPL (1W @ 1m)
