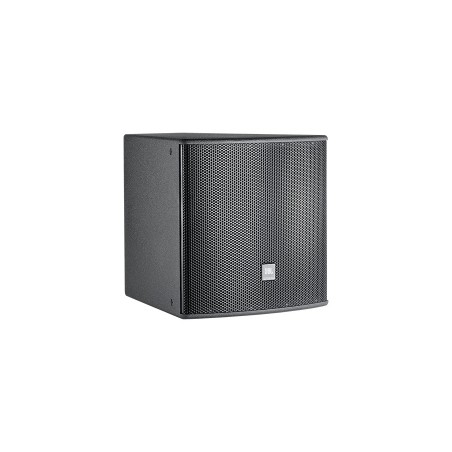

JBL AL7115

AL7115

High Power Single 15" Low Frequency Loudspeaker
AL7115 is a high power, low frequency loudspeaker system comprised of one 380 mm (15 in) Differential Drive low frequency driver in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AL7115 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.

FEATURES:

• 1 x 15" 2265H Differential Drive Low- Frequency Driver.
• Large vent area for high output with low distortion.
• Arrays with various AE Series mid-high frequency and compact 2-way models (see AE Series Array Guide).

APPLICATIONS:

• Performing arts facilities
• Theatrical sound design
• Auditoriums
• Houses of worship
• Live clubs
• Dance-clubs/discotheques
• Sports facilities
• Themed entertainment venues

SPECIFICATIONS:

• Frequency Range (-10 dB) - 40 Hz – 4.2 kHz
• Frequency Response (±3 dB) - 47 Hz - 3.0 kHz
• Transducer Power Rating (AES) - 1000 W (4000 W peak), 2 hrs
• Long-Term System Power Rating (IEC) - 600 W (2400 W peak), 100 hrs
• Maximum SPL - 50 Hz –125 Hz: 127 dB-SPL cont avg (133 dB peak) and 125 Hz – 800 Hz: 126 dB-SPL cont avg (132 dB peak)
• System Sensitivity (dB-SPL, 1W @ 1m) - 50 Hz – 125 Hz: 97 dB and 125 Hz – 800 Hz: 97 dB
• Nominal Impedance - 8 ohms
• Low Frequency Driver - 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
• Enclosure - Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
• Suspension Attachment - 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
• Finish - Black DuraFlex finish. White available upon request.
• Grille - Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
• Input Connector - NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
• Environmental Specifications - Mil-Std 810; IP-x3 per IEC529
• Dimensions (H x W x D in vertical cabinet orientation) - 548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)
• Net Weight - 25.9 kg (57 lb)
• Optional Accessories - M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
