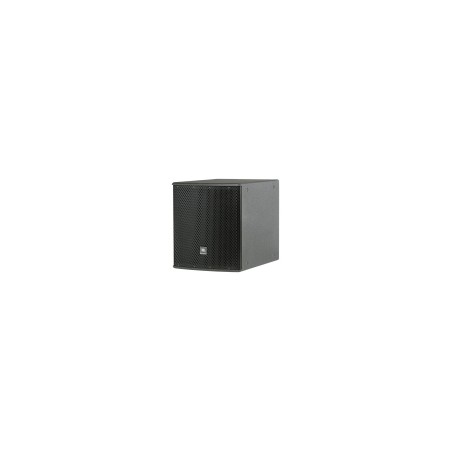

JBL ASB6115 (White)

ASB6115

High Power Single 15" Subwoofer
The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive dual voice coil dual gap 15" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

FEATURES:

• 2265H-1 15" Differential Drive dual voice coil dual gap, neodymium magnet transducer
• 800 watts continuous pink noise, 3200 watts peak power handling capacity
• Large vent area for high output with low distortion
• For ground-stacked or suspended applications in stand-alone arrays or in combination with other
• AE Series products

SPECIFICATIONS:

• Frequency Range (-10 dB) - 32 Hz - 1 kHz
• Frequency Response (± 3 dB) - 42 Hz - 1 kHz
• Transducer Power Rating - 800 W (3200 W peak), 2 hrs.
• Long-Term System Power Rating - 675 W (2700 W peak), 100 hrs.
• Maximum SPL (1m) - 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
• System Sensitivity - 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
• Nominal Impedance - 8 ohms
• Low Frequency Driver - 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive driver
• Enclosure - Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
• Suspension Attachment - 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
• Finish - Black DuraFlex finish. White available upon request.
• Grille - Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
• Input Connector - NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
• Environmental Specifications - Mil-Std 810; IP-x3 per IEC529.
• Dimensions (H x W x D in vertical cabinet orientation) - 483 x 419 x 597 mm (19.0 x 16.5 x 23.5 in)
• Net Weight - 20.6 kg (45.5 lb)
• Optional Accessories - M10 x 35 mm forged shoulder eyebolts with washers.
