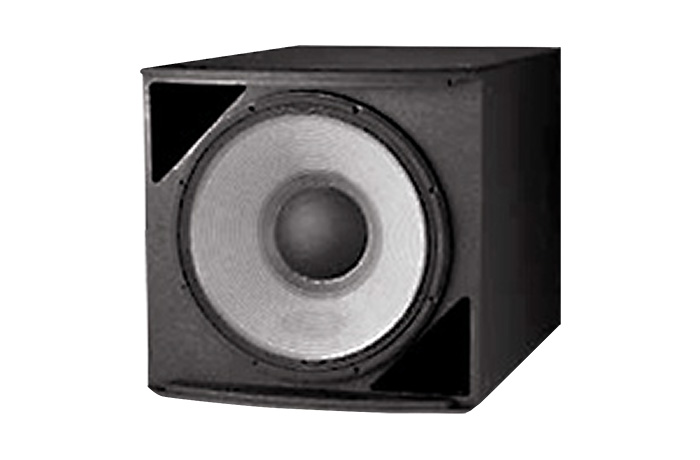

JBL ASB6118

ASB6118

High Power Subwoofer 1 x 18" 2242H SVG Driver
ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

FEATURES:

• Large vent area for high output.
• Arrays with AM7200 mid-high loudspeakers (using PAF-2K planar array frame kit) Arrays with AM2212 full-range speakers (using PAF-1K planer array frame kit). See Array Guide.
• For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

SPECIFICATIONS:

• Frequency Range - 28 Hz – 1 kHz (-10 dB)
• Frequency Response - 35 Hz – 1 kHz ( ± 3 dB)
• Transducer Power Rating (AES) - 1200 W (4800 W peak), 2 hrs
• Long-Term System Power Rating (IEC) - 800 W (3200 W peak), 100 hrs
• Maximum SPL - 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak) and 100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)
• System Sensitivity (dB-SPL, 1W @ 1m) - 30 Hz – 100 Hz: 98 dB and 100 Hz – 500 Hz: 98 dB
• Nominal Impedance - 8 ohms
