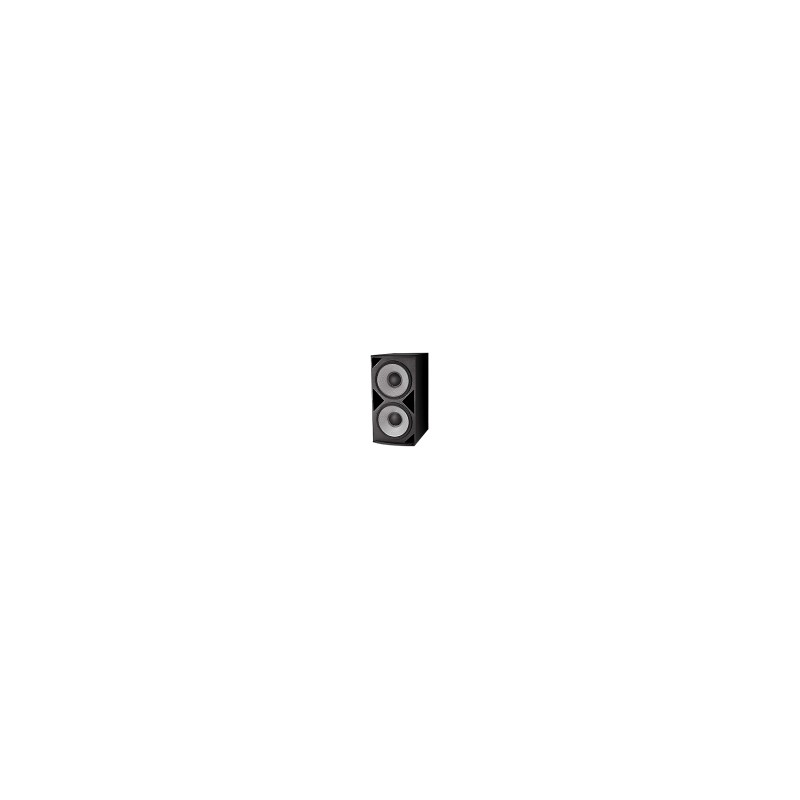

JBL ASB6128 (White)

ASB6128

High Power Subwoofer 2 x 18" 2242H SVG Driver
ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.

FEATURES:

• Large vent area for high output.
• Parallel/Discrete Switchable.
• For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

SPECIFICATIONS:

• Frequency Range - 28 Hz – 1 kHz (-10 dB)
• Frequency Response - 35 Hz – 1 kHz ( ± 3 dB)
• Input Modes - Drivers Parallel / Drivers Discrete
• Transducer Power Rating (AES) - 2400 W (9600 W peak), 2 hrs
• Long-Term System Power Rating (IEC) - 1600 W (6400 W peak), 100 hrs
• Maximum SPL - 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak) and 100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
• System Sensitivity (dB-SPL, 1W @ 1m) - 30 Hz – 100 Hz: 102 dB and 100 Hz – 500 Hz: 102 dB
• Nominal Impedance - 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
