JBL ASB6128V High Output Extended Response Dual 18 Inch Subwoofer

£5,088.00
Tax included
£4,240.00 Tax excl.

ASB6128V

High Output Extended Response Dual 18" Subwoofer

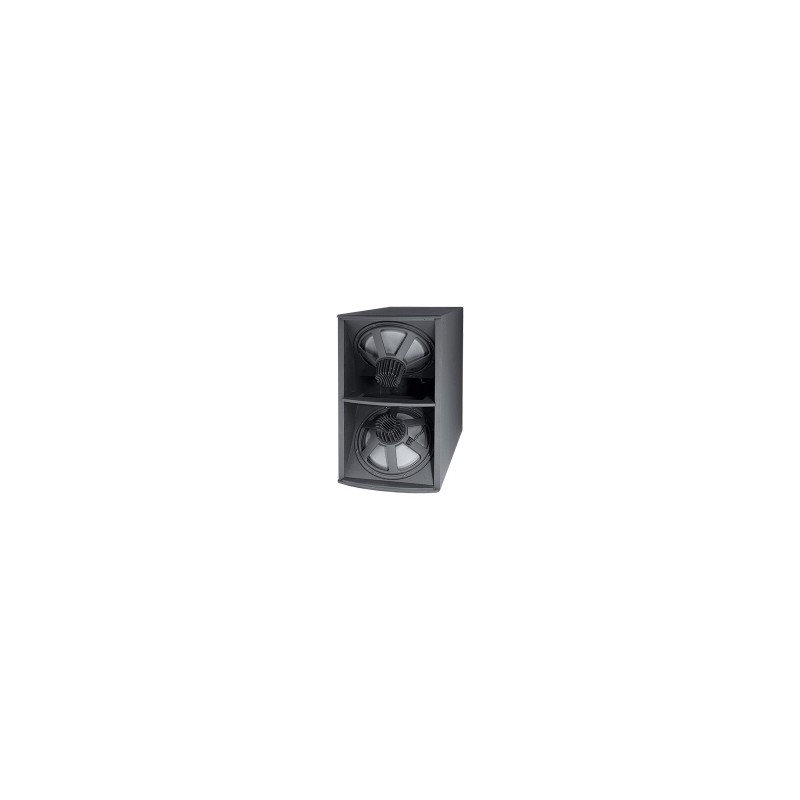

ASB6128V is a high power subwoofer system comprised of two 460 mm (18 in) NDD Neodymium Differential Drive low frequency drivers in loaded configuration.

Quantity

Ask a Quote

JBL ASB6128V High Output Extended Response Dual 18 Inch Subwoofer


High Output Extended Response Dual 18" Subwoofer
ASB6128V is a high power subwoofer system comprised of two 460 mm (18 in) NDD Neodymium Differential Drive low frequency drivers in loaded configuration.

FEATURES:

  • Driver magnets outward for maximum cooling.
  • Large vent area for high output.
  • Parallel / Discrete Switchable.
  • Arrays with AM7315 loudspeakers (using PAF-2K planar array frame kit).
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

SPECIFICATIONS:

  • Frequency Range - 22 Hz - 300 Hz (-10 dB)
  • Frequency Response - 25 Hz - 300 Hz ( ± 3 dB)
  • Input Modes - Drivers Parallel / Drivers Discrete
  • Transducer Power Rating (AES) - 2400 W (9600 W peak), 2 hrs
  • Long-Term System Power Rating (IEC) - 1600 W (6400 W peak), 100 hrs
  • Maximum SPL - 30 Hz - 100 Hz: 132 dB-SPL cont avg (138 dB peak) and 100 Hz - 300 Hz: 136 dB-SPL cont avg (142 peak)
  • System Sensitivity (dB-SPL, 1W @ 1m) - 25 Hz - 80 Hz 98 dB and 80 Hz - 200 Hz: 102 dB
  • Nominal Impedance - 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
JBL0068

Data sheet

Resolution
4200 Lumens
Product Category Feature
4200 Lumens
Price Unit
Each
Condition
new
Availability
preorder
Brand
4200 Lumens
Manufacturer
JBL
Colour
Black
LED Display Type
4200 Lumens
LED Display Use
4200 Lumens
LED Pitch Size mm
4200 Lumens
Minimum Recommended Viewing Distance m
4200 Lumens
LED Type
4200 Lumens
LED Module Height m
4200 Lumens
LED Module Width m
4200 Lumens
LED Module Height Number of Pixels px
4200 Lumens
LED Module Width Number of Pixels px
4200 Lumens
LED Cabinet Height m
4200 Lumens
LED Cabinet Width m
4200 Lumens
LED Display Brightness cd/m sq
4200 Lumens
LED Downlights
4200 Lumens
Wattage (W)
4200 Lumens
Lumens
4200 Lumens
Colour Render Index (CRI)
4200 Lumens
shipping
4200 Lumens
Light Colour Temperature
4200 Lumens
Lens Throw Ratio
4200 Lumens
Number of Dimmer Pack Channels
4200 Lumens
Dimmer Type
4200 Lumens
Current Per Channel
4200 Lumens
Dimmer Control Type
4200 Lumens
19 Inch Rack Size
4200 Lumens
Internal Rack Depth
4200 Lumens
Projector Brightness in Lumens
4200 Lumens
Projector Throw Ratio
4200 Lumens
Projector Resolution
4200 Lumens
Native Aspect
4200 Lumens

Specific References

EAN13
3414893969912
