CYP - AU-11SA-4K De-embed Audio from HDMI 7.1 4K resolution support

£221.77
Tax included
£184.81 Tax excl.

CYP - AU-11SA-4K De-embed Audio from HDMI 7.1, 4K resolution support

  • HDMI audio de-embedder
  • built in repeater
  • Compliant with v1.4 HDMI, HDCP 1.1 and DVI 1.1 standards
  • Supports un-compressed digital LPCM 7.1, 5.1 or 2ch compressed digital Bitstream
  • Video pass though, no scaling
  • HDMI signal amplification and equalisation supporting HDMI

Quantity

Ask a Quote

CYP - AU-11SA-4K

De-embed Audio from HDMI 7.1, 4K resolution support

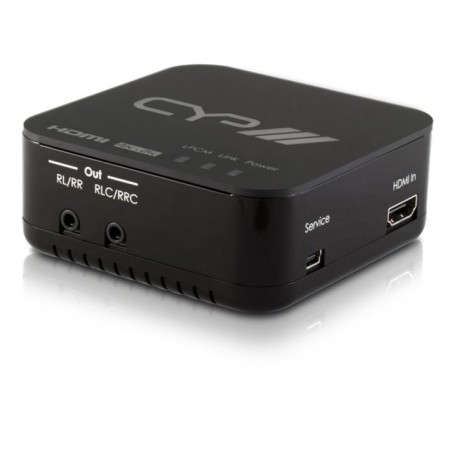

The AU-11CA-4K from CYP is an Audio De-embedder and advanced HDMI Repeater with 4k ultra high resolution support in one simple, compact unit.

The device allows for the audio signal from a HDMI source (including 4K devices) to be split from the video and then inputted into a separate audio system (such as an external surround sound system). The unit offers both analogue and digital audio outputs.
The CYP AU11CA4K includes advanced firmware which allows audio to be de-embedded without the need to connect the HDMI display (i.e. no sync-end required).

In addition, when this combined de-embedder / repeater is connected between your HDMI 4K source and display, it will provide additional amplification and equalization of the HDMI signal, adding up to 10 metres transmission distance either side of the unit at full 1080p.

  • HDMI audio de-embedder with built in repeater
  • Compliant with v1.4 HDMI, HDCP 1.1 and DVI 1.1 standards
  • Supports un-compressed digital LPCM 7.1, 5.1 or 2 channels and compressed digital Bitstream (Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio) through HDMI input and output ports
  • Output resolution follows input resolution. Video pass though, no scaling
  • HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at 1080p.
  • Supports LPCM 7.1, 5.1 or 2 channel output through multichannel analogue output ports
  • Supports digital Dolby 5.1/2 and LPCM 2 channels output through optical output
  • Supports CEC bypass
  • Supports 3D signals and 4K resolutions
  • Supports xvYCC
DescriptionAU-11SA-4K
Inputs 1x HDMI [1x HDMI Uncompressed AV and Data] 1x USB Mini B [1x Service Port Propriety Data]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data] 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM / Dolby Digital Plus] 1x 3.5mm Stereo mini-jack [1x Stereo(L/R)] 1x 3.5mm Stereo mini-jack [1x LowFrequencyEffect(LFE) & Front Centre(FC)] 1
PSU 5v/1.2A
Dimensions 85(W) x 85(D) x 35(H) mm
Weight (Net) 0.10kg
Weight (Gross) 0.44kg
AU-11SA-4K

Specific References

EAN13
3422953261708
