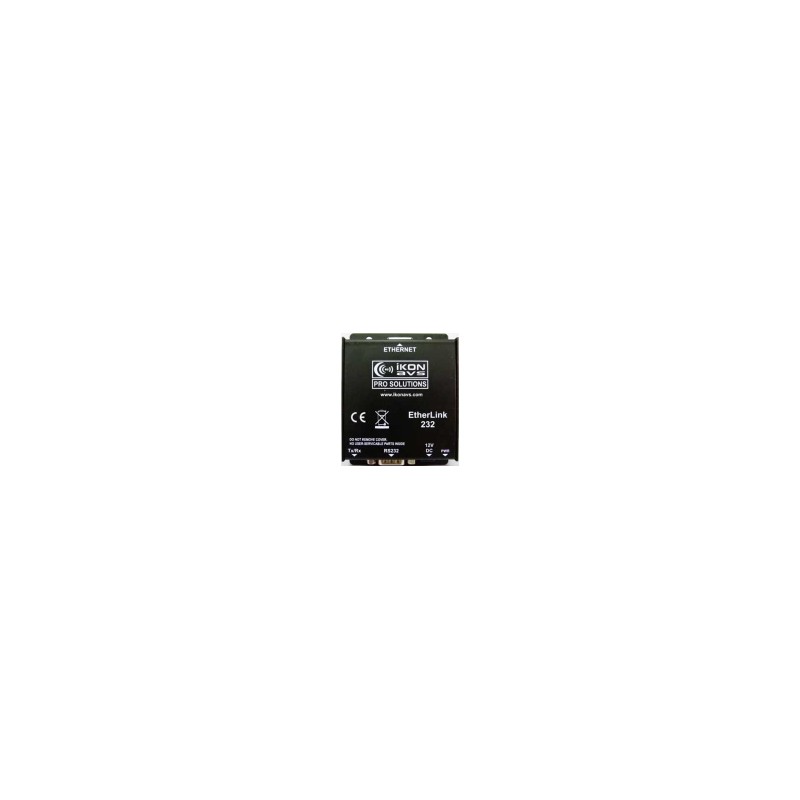

EtherLink 232 RS232 to Ethernet interface for Client and server applications

EtherLink 232 RS232 to Ethernet interface for Client and server applications

Description
EtherLink 232 is the ideal solution for remotely controlling RS232 serial devices over Ethernet via your LAN / WAN network or even over the Internet.

EtherLink 232 supports baud rates up to 230.4Kbps and can operate as a client or server utilising either TCP or UTP protocols with set up via the network.

It also has a power LED to indicate when power has been connected, Link and Data indicators, and a RX / TX LED to indicate when the unit is transmitting it's RS232 commands.

Power supply is included.

Key Features

• 10/100 auto detect interface.
• Supports auto MD/MDIX.
• Virtual serial port support.
• Link and Data indicators.
• Use as a server or client.
• Supports four simultaneous clients in server mode.
• Easy to install.
• Backed by iKONS 3-year warranty and free lifetime technical support

Specification
Hardware devices
1 x Bi-directional RS232 Port
1 x Ethernet port
1 x Data and Link Indicators
1 x Power Socket
1 x Power Indicator

Power requirements  12V DC, 60mA @ 12V.
Size = 67mm x 38mm x80mm, Net weight = 100g
