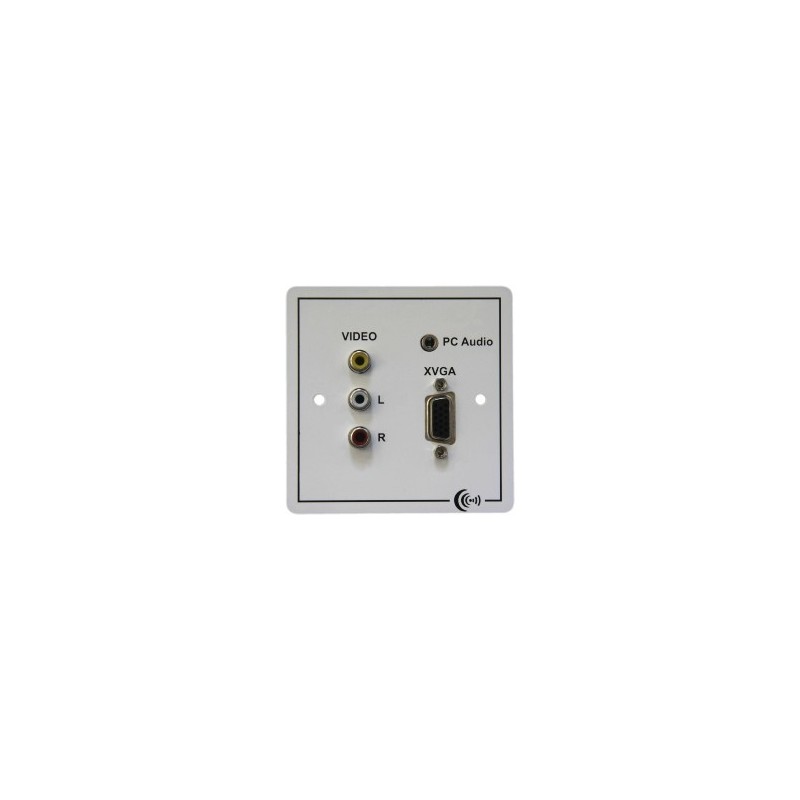

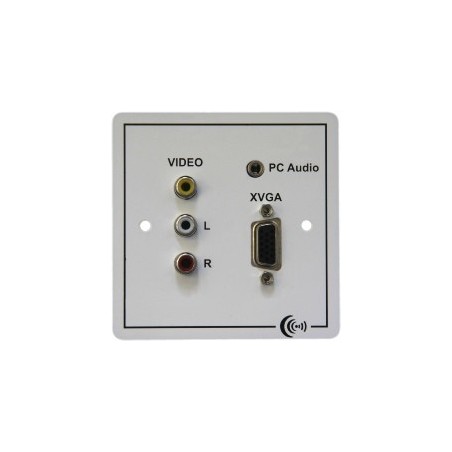

DADO-1G-STA 1G white steel panel with PC, PC Audio, Video and Audio all on screw terminals
£44.16
Tax included
£36.80 Tax excl.
DADO-1G-STA 1G white steel panel with PC, PC Audio, Video and Audio all on screw terminals
This easy to install wall input plate uses a totally passive design and fits a standard single gang back box. Screw terminals are used throughout eliminating the need to solder on site.
DADO-1G-STA 1G white steel panel with PC, PC Audio, Video and Audio all on screw terminals
This easy to install wall input plate uses a totally passive design and fits a standard single gang back box. Screw terminals are used throughout eliminating the need to solder on site. The VGA, Sync, Audio and Video grounds are kept independent to minimised cross talk and reflections for a trouble free installation. Manufactured on a flat steel plate with a durable white finish with black silkscreen.
Overall size = 85mm x 85mm
Input Connections
PC - 1 x HD15 socket
PC Audio - 1 x 3.5mm stereo jack socket
Video - 1 x Yellow Phono (RCA) socket
Audio - 2 x Red & White Phono (RCA) sockets
Output Connections
PC - 15 x Screw terminals on 2.54mm pitch
PC Audio - 3 x Screw terminals on 2.54mm pitch
Video - 2 x Screw terminals on 2.54mm pitch
Audio - 4 x Screw terminals on 2.54mm pitch
DADO-1G-STA
Data sheet
- Condition
- new
- Availability
- in stock
- Manufacturer
- Ikon
Specific References
- EAN13
- 3411020280414
