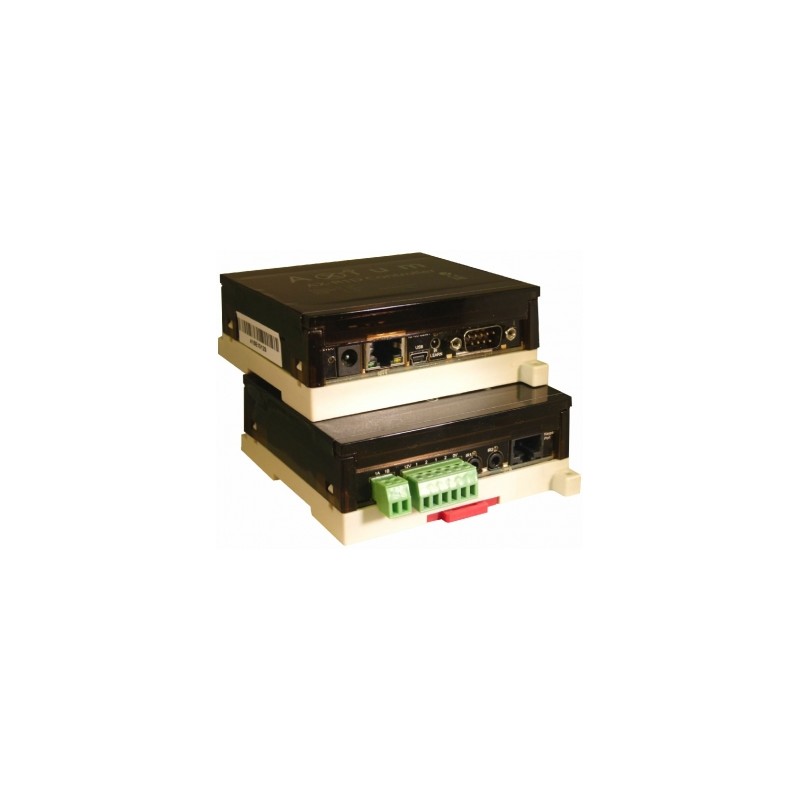

AX-R1D Main Controller with 1 x RS232 port, 2 x IR Ports, 1 x Ethernet port

AX-R1D Main Controller with 1 x RS232 port, 2 x IR Ports, 1 x Ethernet port

Description

The AX-R1D facilitates 2-way communication between the KPC2.8-IP, KPD, Mobile Android and Apple devices and a wide range of 3rd party products bringing Metadata back from these devices to the end user.

Axium Legacy ports to allow for easy integration with KPD keypads or IRFX3. It can also be used to power the KPC2.8-IP when a PoE source is not available. Cable runs of up to 100 meters are achievable for the KPD and IRFX3.

With 2-way routed RS232, Ethernet, routed IR, realtime clock with internet lookup, Analog level detect inputs, command match triggers and relay drivers, the power of 2 way communication is realised in this powerful package.

Android/iOS 2 way Axium amplifier feedback, Android/iOS Full applet support, 2-way Scripting functionality for all devices.

Key Features

Ethernet RJ45 port: 10/100Mbs, DHCP or Fixed IP, PoE
Maximum of 16 IP connections
Configurable IP code specific detection triggers.

Dedicated RS232 port, max throughput = 115k baud port(s) may be configured with code specific detection triggers

IR emitter output / sensor inputs : 3.5mm jacks. These jacks work concurrently as an IR output and sensor input. The IR port(s) route IR signals from R1D controllers IR generator. The Sensor input(s) may be configured as level or frequency threshold triggers.

Specification

• 1 x Ethernet RJ45 port: 10/100Mbs, DHCP or Fixed IP, PoE
  Maximum of 16 IP connections
  Configurable IP code specific detection triggers.
• 1 x Dedicated RS232 port, max throughput = 115k baud port(s) may be configured with code specific detection triggers
• 2 x IR emitter output / sensor inputs : 3.5mm jacks.
  These jacks work concurrently as an IR output and sensor input. The IR port(s) route IR signals from R1D controllers IR generator. The Sensor input(s) may be configured as level or frequency threshold triggers.
