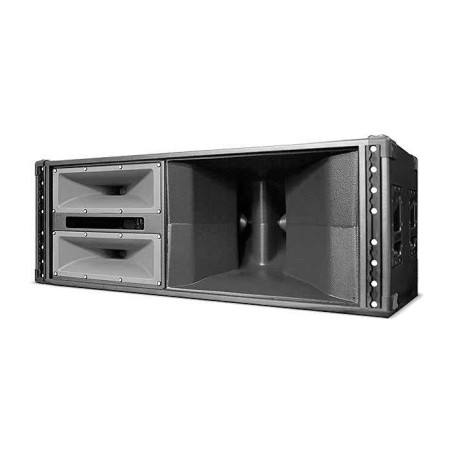

JBL T-2820

JBL T-2820

The Target T-2820’s high frequency section comprises of 2 x 1.4 inch high sensitivity compression drivers mounted onto specially designed high impedance flares. The horn-loaded mid range comprises of 2 x 10 inch low distortion/high efficiency transducers. The drive and control for these devices is provided by the built-in amplification and DSP.

Specifications

Freq Range - 120 - 18k Hz (+/-3 dB / single element)
Max SPL Continuous - 135 dBSPL @ 1 meter with pink noise
Coverage:
Horizontal - 90º (fixed)
Vertical - 40º (single element)
Vertical (adjustable) - Defined by array shape and DDS algorithm
Dynamic range - >104 dB
Audio Input:
Nominal level - 0 dBV
Max Level - +18 dBV (peak)
Type - twin transformer balanced
Impedence (balanced) - 32k Ω
Connector - 3-pin XLR type + hard wired output link
Power Amps:
Type - Class AB
Power - 4 x 370 Wrms (8 Ω)
Mains:
Voltage - 100 V to 250 V, 50 or 60 Hz
Power Consumption - 60 VA (idle) / 1000 VA (full load)
Connector - PowerCon + link output
Temperature Range (ambient) - 0 to 40 º C
Transducers - 2 x 1.4” (horn-loaded compression driver)
                    2 x 10” (direct radiating)
Dimensions (H x W x D) - 460 x 1240 x 554 mm (18” x 49” x 22”)
Default Colour - Dark Blue
Weight - 83 kg (183 lbs)
