Bose ControlSpace CC-64 Control Centre - Each
search
  • Bose ControlSpace CC-64 Control Centre - Each

Bose ControlSpace CC-64 Control Centre - Each

£1,059.60
Tax included
£883.00 Tax excl.

Bose ControlSpace CC-64 Control Centre - Each

The Bose ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch amplifiers.

Quantity

Ask a Quote

Bose ControlSpace CC-64 Control Centre - Each

The Bose ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system.

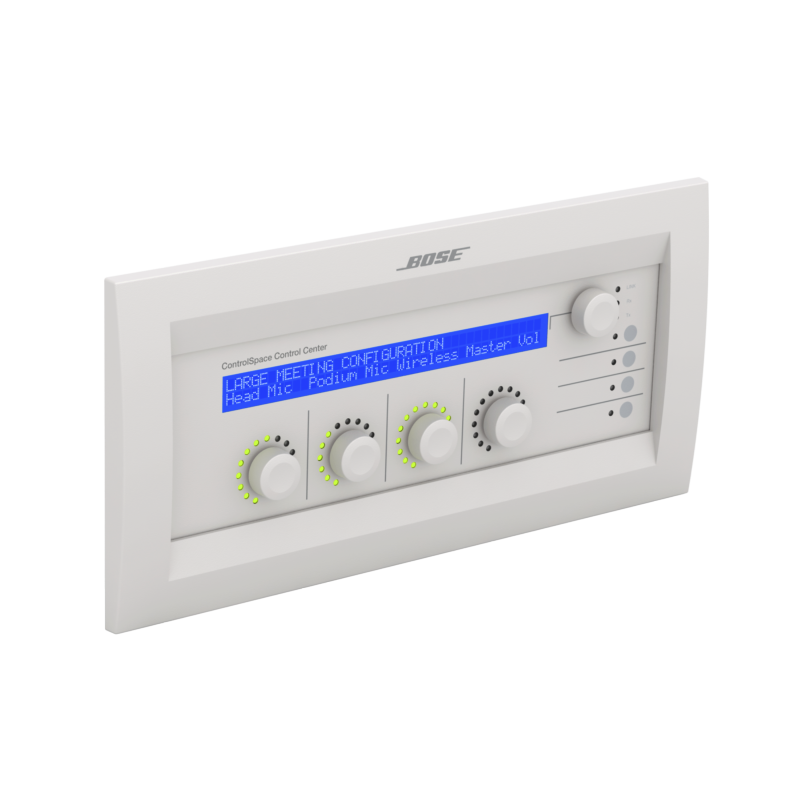

The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed "scenes" or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling.

​

Product Overview

ControlSpace Designer software provides all the necessary tools and functions to configure both the audio signal processing and network operation of Bose engineered sound processors and PowerMatch amplifiers. The open DSP architecture of engineered sound processors is supported by a complete library of signal processing functions, allowing for the creation of a fully customized signal processing design. Network configuration tools help to quickly set up all PowerMatch amplifiers and engineered sound processors for operation on the larger ControlSpace control network.

A library of control functions can be created using Parameter Set and Group control functions. A single Parameter Set can change the state of a single processing function, or a collection of various processing parameters when invoked, while Groups provide the ability to control multiple gains simultaneously or multiple instances of the same signal processing function type. Both Parameter Set and Group programming functions are easily mapped to the physical controls of a Bose control center, or can be invoked remotely using a standard serial protocol, time/schedule-based invocation or general-purpose inputs(1).

Once the signal processing and control system design are complete, Smart Simulation gives the system designer the ability to test and modify all control programming while offline. Smart Simulation uses virtual representation of physical control centers to configure and test system control programming—eliminating the need to connect to the actual system for control testing purposes.

When actively connected to the system, ControlSpace Designer software is used to configure the operation of all signal processing functions, as a system interface for system set-up and optimization, or as a system monitor. When configured for monitor mode, all device parameters are protected and the system operator only has access to virtual control centers and amplifier monitor functions.

(1)  Timer and GPI-based invocation of parameter sets is only available with engineered sound processors.

41760

Data sheet

Product Category Feature
Sound
Price Unit
Each
Condition
new
Availability
available for order
Audio Product Type
Audio Accessories
Brand
Bose
Manufacturer
Bose
Colour
White

Specific References

EAN13
0017817406215
