OVERVIEW
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it’s easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle — and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

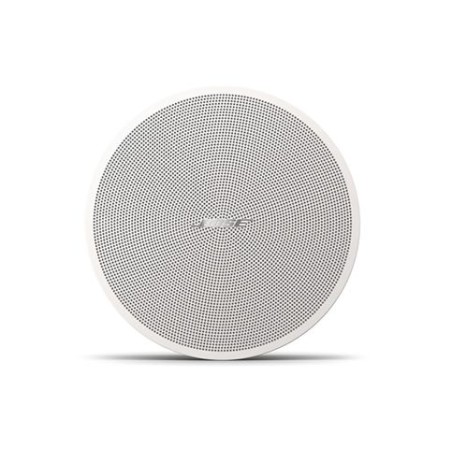

Ideal for background music, the 16-watt DesignMax DM2C-LP loudspeaker features a 2.25-inch transducer and 80 Hz - 19 kHz frequency range. The DM2C-LP has a low-profile backcan and is ceiling-mounted, installed easily via QuickHold mounting arms.
FEATURES
Combine models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.
Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily — all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install in confined ceiling spaces with low-profile backcan measuring just 10 centimeters (3.9 inches) high
Applications
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
SPECS
Technical Summary
Frequency Response (+/-3 dB)
95 - 18,000 Hz
Nominal coverage (H x V)
180° conical
Power Handling, peak
64 W
Maximum SPL @ 1m
96 dB
Frequency Range (-10 dB)
80 - 19,000 Hz
Power Handling, long-term continuous
16 W
Sensitivity (SPL/1W @ 1 m)
84 dB
Nominal Impedance
16 Ω (transformer bypass)
