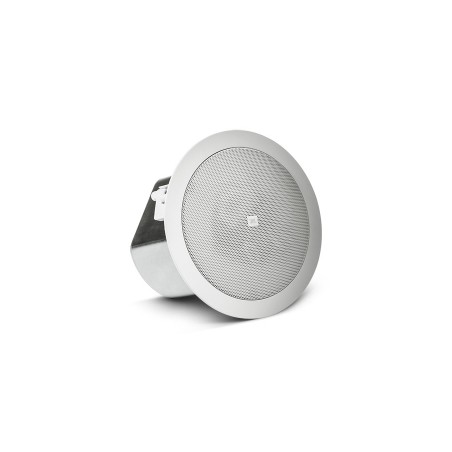

JBL Control 12C/T (White) Pair

Control 12C/T

Compact Ceiling Loudspeaker
Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.

FEATURES:

• 76 mm (3 in) full-range driver
• Blind-mount backcan for quick and easy install
• Combined 70V/100V and low impedance direct operation

• 20 Watts at 8Ω nominal setting
• 15W multi-tap at 70V/100V

• 68 Hz – 17 kHz bandwidth with wide 130° coverage
• White or black (-BK)

SPECIFICATIONS:

• Frequency Range (-10 dB) - 68 Hz – 17 kHz
• Power Capacity (at low-Z) - 40 Watts Continuous Program Power, 20 Watts Continuous Pink Noise
• Transformer Taps - 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
• Frequency Response (±3 dB) - 95 Hz – 15 kHz
• Nominal Sensitivity - 84 dB
• Nominal Coverage Angle - 130° conical coverage
• Directivity Factor (Q) - 9.8
• Directivity Index (DI) - 7.4 dB
• Rated Maximum SPL - 97 dB @ 1 m (3.3 ft) average, 103 dB peak
• Nominal Impedance - 8 ohms (in direct/bypass 8Ω setting)
• Full-Range Driver - 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
• Input Connectors - Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
• Connector Wiring - Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
• Strain Reliefs - Strain relief for two cables or two flex conduits via coupled clamping mechanism
• Materials - ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
• Safety Agency - UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
• Dimensions - 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
• Ceiling Cutout Size - Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
• Ceiling Thickness Range - Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
• Safety Seismic Attachment - One point, top surface
• Net Weight - 1.6 kg (3.5 lbs, one speaker)
• Shipping Weight - 6.7 kg (14.7 lbs, pair in master carton)
• Included Accessories - C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
• Optional Accessories - MTC-24NC new construction bracket, MTC-24MR mud-ring construction bracket, MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers), MTC-48TR tile rail for 1200 mm (4 ft) tile spans
