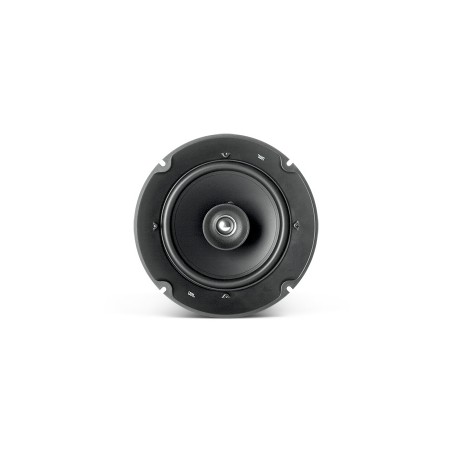

JBL Control 26-DT Pair of Ceiling Speaker

Control 26-DT

6.5" Ceiling Loudspeaker Transducer Assembly
The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.

FEATURES:

• Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
• Comes complete with transducer, network and transformer.
• Advanced crossover network provides natural sound and even coverage throughout listening area.
• 60 W transformer for 70 V or 100 V distributed speaker lines.
• Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.

SPECIFICATIONS:

• Frequency Range - 80 Hz - 20 kHz
• Power Capacity - 150 W Continuous Program Power; 75 W Continuous Pink Noise
• Transformer Taps - 70V: 60W, 30W, 15W & 7.5W and 100V: 60W, 30W, & 15W
• Nominal Coverage Angle - 110° conical coverage
• Directivity Index (DI) - 4.6 averaged 500 Hz to 4 kHz
• Rated Maximum SPL - 107 dB @ 1 m (3.3 ft)
• Low-Frequency - 165 mm (6.5 in) Polypropylene-coated, 1" coil on aluminum former
• High-Frequency - 19 mm (¾ in) Titanium coated polyester
• Termination - Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
• Outside Dimensions (H x Dia) - 210 x 252 mm (8.3 x 9.9 in), 190 mm (7.5 in) front of ceiling tile to back of backcan
• Net Weight (ea) - 4.2 kg (10 lb)
• Shipping Weight (pair) - 9.7 kg (21 lb)
