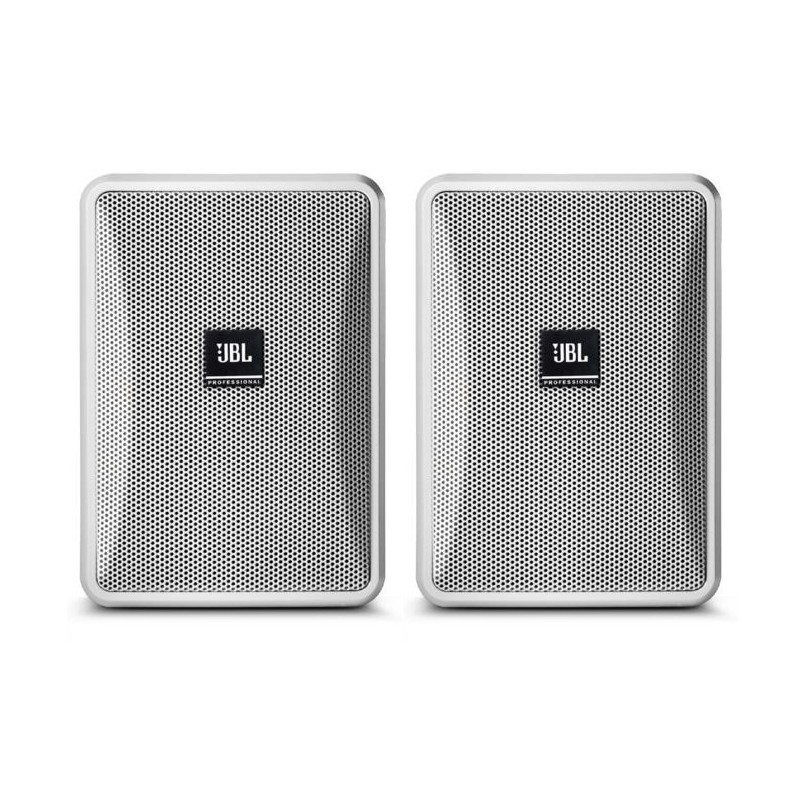

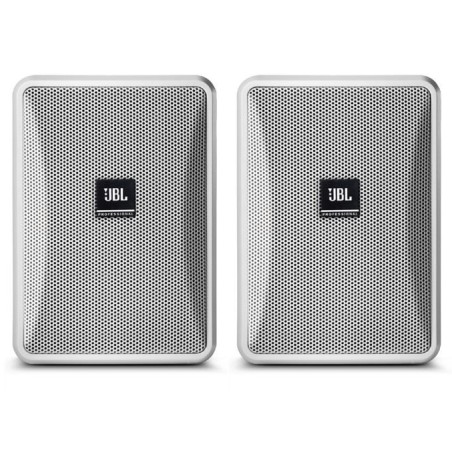

JBL Control 23-1-WH White Pair of Speakers 100V Line or 8 Ohm

JBL Control 23-1-WH White Pair of Speakers 100V Line or 8 Ohm

Ultra-Compact Indoor/Outdoor Background/Foreground Loudspeaker
The Control 23T is the most compact of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/background music and paging are required, with minimum aesthetic impact.

FEATURES:

• Isolation transformer for 70.7 V / 100 V distributed-line sound systems.
• Components: 3.5 in Polypropylene coated woofer, .5 in Titanium coated horn loaded tweeter.
• Built-in InvisiBall mounting hardware.
• Weather resistant enclosure and transducers.
• Readily paintable to match decor.
• 130 mm (5.25 in ) polypropylene coated woofer, 10 mm (.75 in ) titanium coated horn-loaded tweeter.
• 90° x 90° high frequency horn.

SPECIFICATIONS:

• Frequency Range - 100Hz to 21kHz (-10 dB)
• Power Capacity - 50 W Continuous Program Power; 25 W Continuous Pink Noise
• Transformer Taps - 5 W @ 70V, 10 W @ 100V (IEC pink noise, 100 hrs.)
• Directivity Factor (Q) - 4.8 dB
• Directivity Index (DI) - 6.8 dB
• Nominal Impedance - 8 ohms
• Crossover Frequency - 3.5kHz
• LF Driver - 88mm (3.5 in) Polypropylene cone w/ WeatherEdge
• HF Driver - 13mm (.5 in ) Titanium coated polycarbonate
• Enclosure Material - HIPS (High Impact Polystyrene)
• Overload Protection - Full-Range power limiting to protect network and transducers
• Terminations - Spring terminals, accepts banana plug
• Safety Agency Rating - Transformer UL1876 recognized
• Environmental - Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating.
• Dimensions (H x W x D) - 193 x 140 x 111 mm (7.6 x 5.5 x 4.4 in)
• Net Weight (ea) - 1.8kg (4 lb)
• Shipping Weight (ea) - 4.1kg (9 lb)
• Included Accessories - variety of paints and finishes to Invisiball Assembly 4mm x 80mm hex key
• Optional Accessories - MTC-23V: For vertical columnar orientation of up to 3 loudspeakers polypropylene and terminating its MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array.
