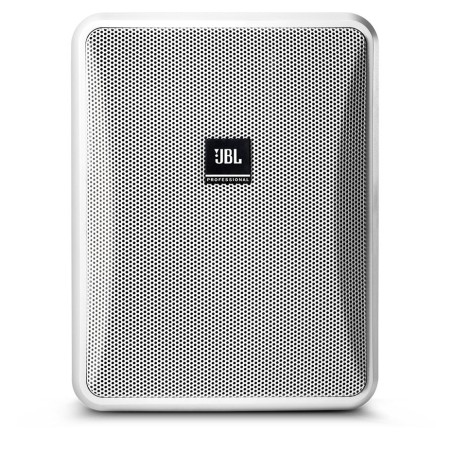

JBL Control 25-1L-WH White Pair of Speakers (8 Ohm Input Only)

£720.00
Tax included
£600.00 Tax excl.

JBL Control 25-1L White Pair of Speakers Specifications As Per The Control 25-1 But Without The 70/100v Transformer (8 Ohm Input Only)
​

Compact Indoor/Outdoor Background/Foreground Loudspeaker
The Control 25 is perhaps the most versatile of JBL Professional’s Control Contractor Series
indoor/outdoor loudspeakers.

Quantity

Ask a Quote

JBL Control 25-1L White Pair of Speakers Specifications As Per The Control 25-1 But Without The 70/100v Transformer (8 Ohm Input Only)

Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker

The Control 25-1L is a two-way 5-¼” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Features

  • 5-¼” woofer with woven fiberglass cone
  • 3/4” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 100 Watt power handling (200 Watt program)
  • High fidelity sound character with broad frequency response of 60 Hz – 20 kHz.


Downloads

  Version Language Size Uploaded
Specifications
 Control 25-1L Spec Sheet B    625 KB Mar 13, 2020
Manuals
 MTC-23UB-1, 25UB-1, 28UB-1 U Bracket Install Guide     67.7 KB Oct 31, 2019
CAD Drawings
 Control 23-1, 25-1, 28-1 Bracket 2D & 3D CAD, PDF     5.81 MB Oct 22, 2020
 Control 25-1/L 3D Drawing     2.53 MB Oct 22, 2020
 Control 25-1/L 2D Drawing     487 KB Oct 22, 2020
Bim Objects
 Control 25-1 BIM Object     Aug 27, 2019
Compliances
 JBL Control Series Passive Speakers DoC     179 KB Dec 17, 2019
 Control Contractor Series Declaration of Conformity     131 KB Oct 18, 2019
 Control Contractor 20-1(L) Declaration of Conformity     75.9 KB Oct 18, 2019
Software
 Distributed System Design (DSD) v3.6.2 3.6.2     805 KB Jan 14, 2020
Accessories
 WeatherMax Grille Photos     2.75 MB Apr 09, 2021
 U-Bracket Install guide     67.7 KB Oct 22, 2020
Clf Files
 JBL Pro ALL CLF Files 03-19-20    23.9 MB Mar 19, 2021
Install Guides
 Guide to Business Music     52.4 KB Oct 22, 2020
 Attaching Control Contractor Speakers to Stands     76.4 KB Nov 02, 2019
 Invisiball™ Installation Instructions     227 KB Sep 30, 2019
 Control Contractor Bracket and Adapter Handbook     774 KB Sep 27, 2019
Speaker Tunings
 Commercial, CBT, and AWC Tunings 181030     557 KB Oct 22, 2020
Application Guides
 Loudspeakers for Sports Facilities   en  5.71 MB May 04, 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 60 Hz to 20 kHz
Frequency Response (±3 dB) 85Hz - 17 kHz
Power Rating 200 W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuou Pink Noise Rating and is a conservative expression of the system’s ability to handle normal speech and music program material.
Maximum Input Voltage 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL (1m) 110 dB ave. Continuous Pink Noise (116 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression.
Sensitivity 90 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
Coverage Angle 100° x 100° *Coverage angle (-6 dB) average between 1 kHz and 12 kHz.
Directivity Factor (Q) 6.04 (averaged 1kHz – 16kHz)
Directivity Index (DI) 7.6dB (averaged 1kHz – 16kHz)
Impedance 8 ohms
Crossover Type 2nd order low-pass, 3rd order high-pass
Recommended Protective High-Pass 60 Hz high-pass (24 dB/oct) *For protection against driving below resonant frequency and to keep transformer out of saturation.
Drivers LF: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Installation InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
Input Connectors Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Safety Agency ROHS-compliant
Colors Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D) 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation
Net Weight (each) 3.0 kg (6.7 lbs)
Shipping Weight 7.3 kg (16.0 lbs) for the pair-pack (for 2 speakers)
Included Accessories InvisiBall™ wall-mounting system, 6 mm x 100 mm hex key
Optional Accessories MTC-25UB-1 – Yolk-type U-bracket (&-WH)
Mounting Hardware InvisiBall™ aimable wall-mounting system included. Optional U-bracket.
JBL1785

Data sheet

Price Unit
Pair
Condition
new
Availability
in stock
Audio Product Type
Speakers
Brand
JBL
Manufacturer
JBL
Speaker Type
Passive Low Impedance Speaker
Speaker Mount Type
Surface Mount Speakers
Speaker Continuous Power Handling Wattage (W)
100W
Colour
Black

Specific References

EAN13
0691991005121
