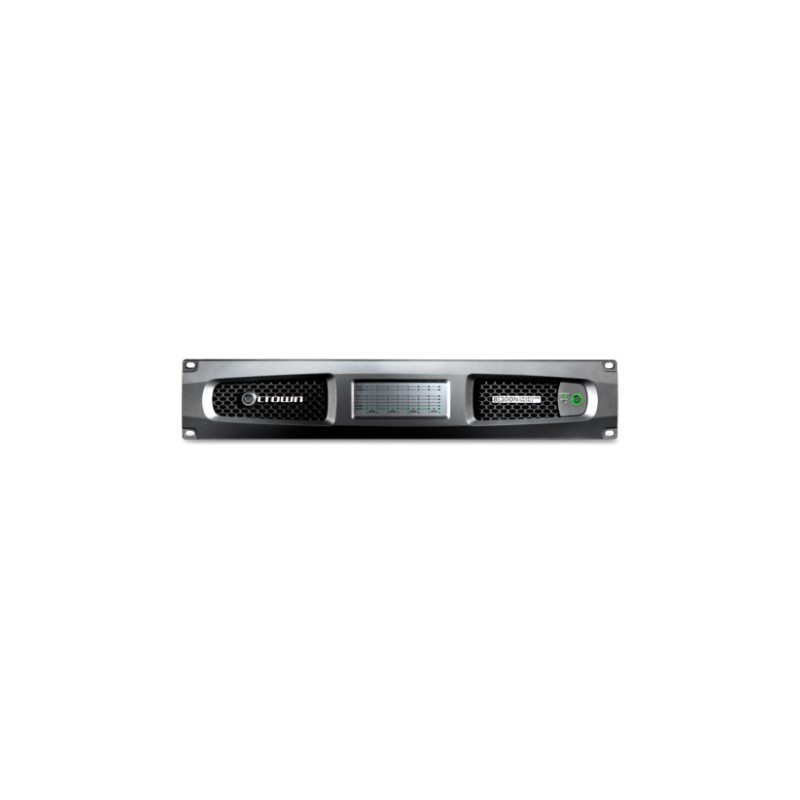

Crown DCi8-300N Eight-channel Power Amplifier

Crown DCi8-300N Eight-channel Power Amplifier

The new DriveCore install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

Key Features

ANALOG & DIGITAL INPUTS – With digital audio transport via HARMAN’s proprietary BLU-Link, plus balanced analog inputs, DCi gives you a tremendous audio advantage – at a much lower cost. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.

NETWORK MONITORING & CONTROL – Better monitoring, control and audio manipulation with the HiQnet protocol that’s over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.

PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORTS – GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.

DIGITAL SIGNAL PROCESSING – DSP capabilities include the following:

• LevelMAX Limiters
• Input/Output EQ
• Delay
• Matrix Mixer
• Speaker Line Monitoring

Specifications

Frequency Response ( 8 Ohms, 20 Hz - 20 kHz) - +/- 0.25 dB
BLU Link Input Signal to Noise Ratio (A-Weighted) - > 104dB
Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz) - 0.35%
Voltage Gain -34 dB
Damping Factor (20 Hz to 100 Hz) - >1000
Input Impedance (nominal balanced, unbalanced) - 10 kOhms, 5 kOhms
Maximum Input Level before Compression - +20 dBu
Load Impedance (Stereo/Dual Mode) - 2 - 16 Ohms; 70Vrms and 100Vrms
Load Impedance Bridge Mono - 4 - 16 Ohms; 140Vrms and 200Vrms
Cooling - Continuously variable speed forced air, front to back airflow
Maximum Fan Noise (re dBA SPL @ 1M) - 47
Required AC Mains (+/- 10%) - 100V-240V ~ 50/60 Hz
Dimensions - 19" x 3.5" x 14.25" (48.3cm x 8.9cm x 35.63cm)
Weight - 23.5lbs (10.66kg)
IEC Power Connector - 15A
