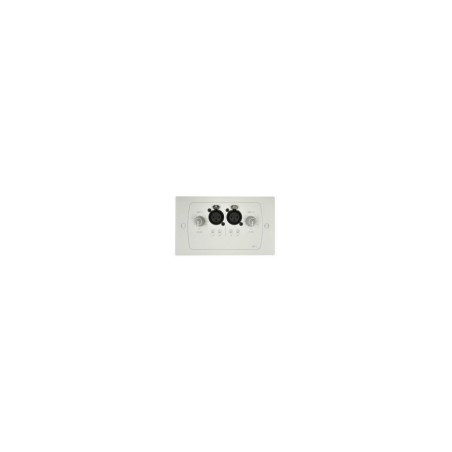

ME-1W Microphone Input Module - White (DCM-1 / DCM-1e)

ME-1W Microphone Input Module - White (DCM-1 / DCM-1e)

​
The ME-1 microphone input connector plate provides two balanced microphone inputs for the Cloud DCM-1 and DCM-1e Digital Control Zone Mixers. The ME-1 is useful where microphone inputs are required locally in a zone and offers adjustable mic level and adjustable EQ per input.

Each microphone input per ME-1 is mixed at the ME-1 plate and the summed output signal of both microphone inputs is routed to the Cloud DCM-1/DCM-1e.

The ME-1 connects to one of  four dedicated ME-1 input ports on a Cloud DCM-1/DCM-1e via a single screened CAT-5 cable. Up to four ME-1 microphone Input plates can be daisy chained together per input port on a Cloud DCM-1/DCM-1e.
