JBL IntelliDisc-DS90
£20,664.00
Tax included
£17,220.00 Tax excl.

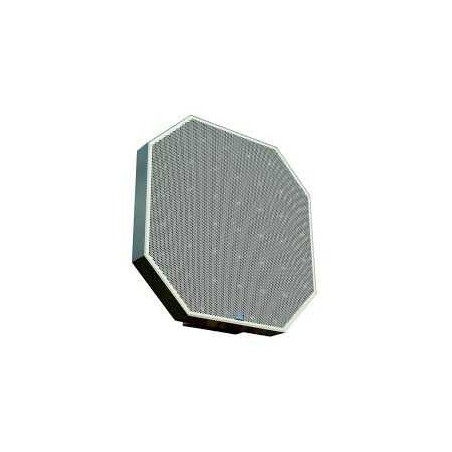

JBL IntelliDisc-DS90
Fully integrated, digitally controlled, two dimensional loudspeaker array. DDS technology allows control over horizontal and vertical beam steering. 41 4" full range transducers. Class D amplifier. Frequency range 130-12kHz ±3dB. Max SPL 97dB(A) @ 10m continuous (101dB(A) peak).
JBL IntelliDisc-DS90
Fully integrated, digitally controlled, two dimensional loudspeaker array. DDS technology allows control over horizontal and vertical beam steering. 41 4" full range transducers. Class D amplifier. Frequency range 130-12kHz ±3dB. Max SPL 97dB(A) @ 10m continuous (101dB(A) peak). RISC processors provides safety funtions including pilot tone detection, amp load, ambient mic, temperature and amplifier surveillance.
SAFETY FEATURES
The IntelliDisc-DS90 is also equipped with a RISC processor to take care of surveillance rou- tines, which are performed every 1/20 second. In addition to this the RISC processor is monitored by a watchdog, So, in the event of a failure, the processor will be reset.
Surveillance functions include, but are not limited to:
• Pilot tone detection
• Amplifier load surveillance
• Ambient microphone surveillance
• Amplifier surveillance
• Temperature surveillance
• DSP functionality
Surveillance functions include, but are not limited to:
• Pilot tone detection
• Amplifier load surveillance
• Ambient microphone surveillance
• Amplifier surveillance
• Temperature surveillance
• DSP functionality
All relevant status parameters and temperatures can be monitored via the RS-485 network. Failures can be reported by the on board failure relay or via one of the many features offered by WinControl.
SPECIFICATIONS
ACOUSTICAL:
Frequency Range - 130 - 12k Hz (+/-3 dB)
Max SPL
Coverage
Dynamic range - >100 dB
ELECTRICAL:
Input
DSP module(2x)
Mains
GENERAL:
Temperature Range (Ambient) - 0 to 40°C
Transducers - 41 x 4” full range
Dimensions (H x W x D) - 850 x 850 x 195 mm (33.5”x 33.5”x 7.7”)
Default Color
Weight - 56.5 kg (125 lbs)
Frequency Range - 130 - 12k Hz (+/-3 dB)
Max SPL
- Continuous - 97 dB(A) @ 10 m
- Peak - 101 dB(A) @ 10 m
Coverage
- Horizontal - geometry dependent
- Vertical - geometry dependent
Dynamic range - >100 dB
ELECTRICAL:
Input
- Nominal level - 0 dBV (line input)
- Type - dual line input, transformer balanced
- Impedance (balanced) - 6k8 Ohm
DSP module(2x)
- Type - floating point 900 MFLOPS 32 bitsPower Amps
- Memory - 64Mb SDRAM + 3Mb non volatile
- AD - DA conversion - 24 bits sigma-delta 128 x oversampling
- Type - PWM (Class D)
- Power - 32 x 40 Wrms (4 Ohm)
Mains
- Voltage (+5%/-10%) - 230 or 115V
- Power consumption - 168 VA (idle) / 1450 VA (full load)
GENERAL:
Temperature Range (Ambient) - 0 to 40°C
Transducers - 41 x 4” full range
Dimensions (H x W x D) - 850 x 850 x 195 mm (33.5”x 33.5”x 7.7”)
Default Color
- Enclosure and grill - RAL 9010 (white)
- Speaker baffle - RAL 9011 (black)
Weight - 56.5 kg (125 lbs)
JBL1514
Data sheet
- Price Unit
- Each
- Condition
- new
- Availability
- preorder
- Brand
- JBL
- Manufacturer
- JBL
- Colour
- White
Specific References
- EAN13
- 0871015007858
