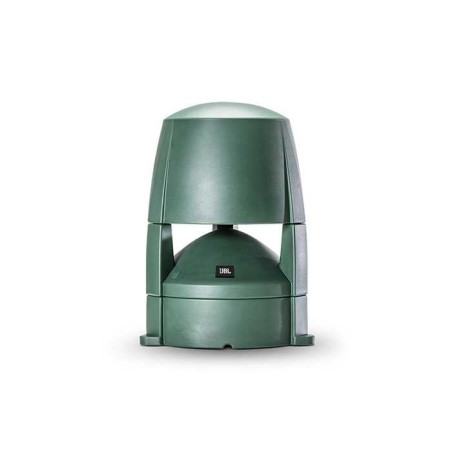

JBL Control 88M

JBL Control 88M

Two-way 8" coaxial mushroom landscape speaker. 120W Pink Noise Power Handling (240W program) in direct 8 setting, plus built-in 60W 70V/100V multi-tap transformer. Tough polyethylene highly weather resistant enclosure. Fully isolated center chamber for wiring protection. High fidelity sound character with broad frequency range of 47Hz - 16kHz.

Features

• Components:
  • 8” highly weather-resistant driver
  • 1” soft-dome highly weather-resistant tweeter
• 120W Pink Noise Power Handling (240W program) in direct 8Ώ setting, plus built-in 60W 70V/100V multi-tap transformer
• Tough polyethylene highly weather resistant enclosure
• Fully isolated center chamber for wiring protection
• High fidelity sound character with broad frequency range of 47Hz - 16kHz

Specifications

Frequency Response (-10dB) - 47 Hz – 16 kHz
Power Rating - 240 W Continuous Program (2 hrs)
                        120W (480W peak), Continuous Pink Noise (2 hrs)
                        100W (400W peak) Continuous Pink Noise (100 hrs)
Transformer Taps - 70V: 60W, 30W, 15W & 7.5W
                              100V: 60W, 30W, 15W
Frequency Response (±3 dB) - 60Hz - 15 kHz
Maximum Input Voltage - 28.0 V
Sensitivity - 87 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Nominal Coverage Angle - 360° horizontal, 160° vertical (primary listening 10° to 50° up from                                                  ground).
Directivity (Q) - 2.1
Directivity Index (DI) - 3.2 dB
Maximum SPL - 108 dB @ 1m
Nominal Impedance - 8Ω (at 8Ω setting)
Insertion Loss - <0.5 dB at any tap setting
Thru Setting - 8Ω nominal
Crossover Type - 2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass - 45 Hz for 8Ω operation, 24 dB/oct
                                                           80 Hz for 60W tap, 24 dB/oct
                                                           50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct
Low Frequency Driver - 200 mm (8.00 in) diameter LF driver, Kapton former, 38mm (1.5 in) voice                                         coil, polypropylene cone and polyurethane surround.
High Frequency - 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure Material - LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.

Grille - Powder coated stainless steel.
Environmental - IP-55 rating per IEC529 (dust protected and protected against jets of water).                                     Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-                               202F for salt spray. Enclosure UL94V0 rated.
Agency Ratings - UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Terminals - Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section)
Wiring - Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure                  (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided                    locations) and one between the bottom base and top speaker sections. Included gland nuts                require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in                 and 0.35” in). For Installation instructions, see Installation Guide (#IS-C80MLS).
Colors - Hunter Green, RAL6018
Dimensions (H x W x D) - 524 x 355 x 355 mm (20.7 x 14 x 14 in.)
Net Weight - 7.8 kg (17 lb)
Shipping Weight - 10.5 kg (23 lb)
Included Accessories - (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
