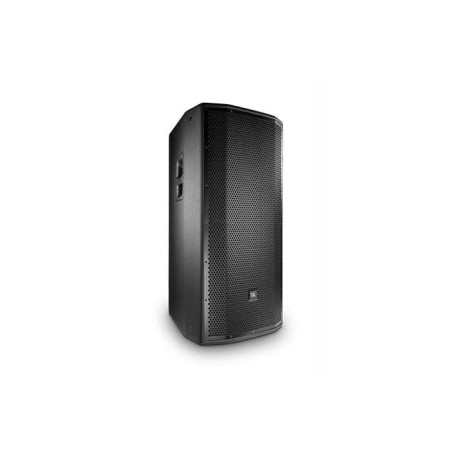

JBL PRX835W

JBL PRX835W

Full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835W delivers incredible volume in a lightweight and compact form factor.

Features

• Built-in Wi-Fi for wireless control of your system from anywhere in the venue
• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
• JBL Differential Drive transducers for higher SPL in a lightweight design
• Next-generation JBL neodymium compression drivers
• Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
• Intelligent variable-speed fan activates only when needed to reduce noise
• Updated tuning delivers flat frequency response and smooth off-axis behavior
• Durable wooden cabinets, tour-proven DuraFlex finish and dent-resistant 16-gauge grilles
• Universal power supply for worldwide compatibility
• dbx Type IV limiting ensures clear, accurate sound at high volumes
• Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Specifications

SystemType - Self Powered 15”, three-way, bass-reflex
Maximum SPL Output - 138 dB peak
Frequency Range (-10 dB) - Normal: 41 Hz – 20 kHz
                                            Boost: 41 Hz – 20 kHz
Frequency Response (±3 dB) - Normal: 50 Hz – 18.25k
                                                 Boost: 48 Hz - 20k
Input Connectors - 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance - 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators - Limit: Yellow LED indicates peak output has been reached and dsp limiter is                                       acting
                              Signal: Green LED indicates signal present
                              Power: Blue indicates system has power and ready to pass audio.                       EQ - User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX         Connect application
Dynamic Control (Input) - dbx Type IV limiter circuit
Crossover Frequency - 580 Hz, 2.1 kHz
Design - Highly efficient Class-D amplifier
Power Rating - 1500W
AC Power Input - 100V - 240V ~ 50/60 Hz
LF Driver - 1 x JBL 275G 380 mm (15 in) woofer                                                                              MF Driver - 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer                                     HF Drvier - 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression                      driver
Enclosure - Trapezoidal, 18 mm, plywood
Transport - 2x integrated handles with injection molded backing cup
Finish - Obsidian DuraFlex finish
Grille - Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth                backing.
Dimensions (H x W x D) - 938 mm x 446 mm x 539 mm
                                        (36.9 in x 17.5 in x 21.2 in)
Net Weight - 34.9 kg (77.0 lb)
Gross Weight - 38.6 kg (85.0 lb)
