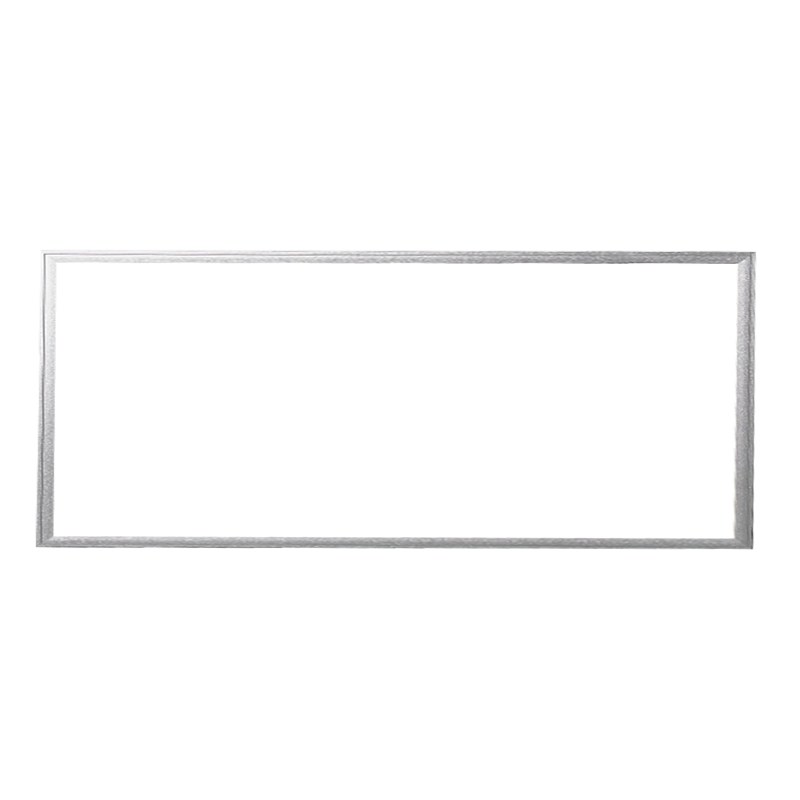

Switched Single Colour LED Panel 300mm x 1200mm - 372 x SMD 3528 LEDs per Panel Warm White Natural White Cool White Red Green Bl

Switched Standard Single Colour LED Panel 300mm x 1200mm - 372 x SMD 3528 LEDs per Panel:

Switched Single Colour LED Panel 300mm x 1200mm - 372 x SMD 3528 LEDs per Panel Warm White 2700-3300k - Natural White 4000-5000k- Cool White 7000k - Red - Green - Blue - YellowWarm White 2700-3300k, Natural White 4000-5000k, Cool White 7000k, Red, Green, Blue, Yellow

Brightness adjustable series :

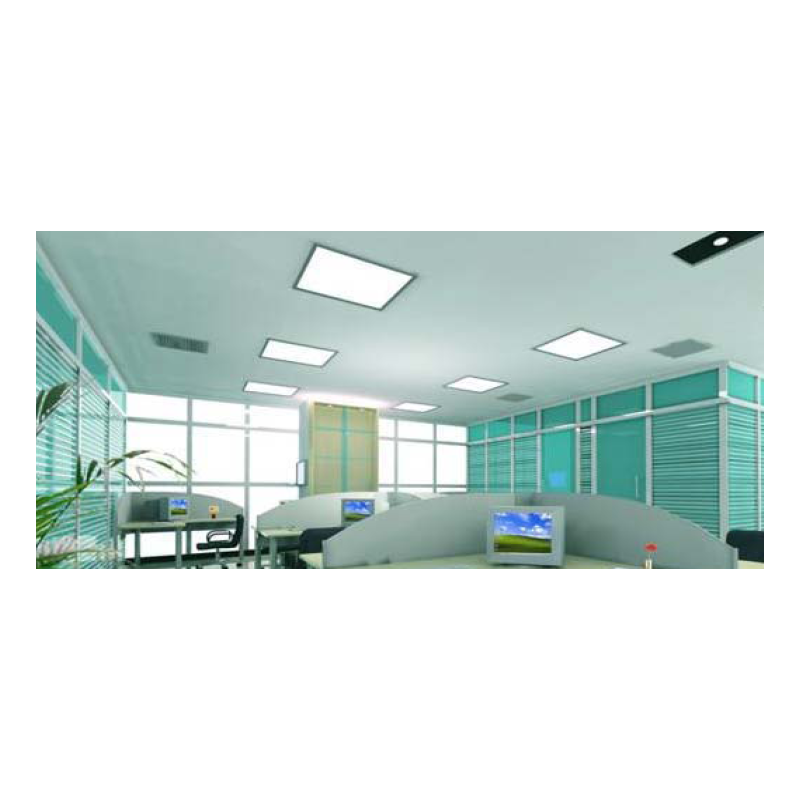

Install Applications:

- Hotels

- Conference/Meeting rooms

- Factories & Offices

- Commercial Purposes

- Residential/Institution Buildings

- Schools,Colleges & Universities

- Hospitals

- Places where energy saving and high color rendering index lighting are needed.

Switched Standard Single Colour LED Panel 300mm x 1200mm - 372 x SMD 3528 LEDs per Panel:

LED panel light
* 58W ultrathin 300*1200mm panel light
* Over 50, 000 hours lifespan
* 3 Years warranty
* CE & RoHS

372 x 3528 SMD LED's per Panel

Energy saved up to 50%. High intensity

Over 5-years life span

Special different view angles, mixing lighting design

Instant start, no flickering, no humming

New inner high efficiency (95%) With heat protection system, the constant current driver can work under unstable voltage.

Special circuit design, each LED can work separately thus it can avoid the influnence that a broken LED causes.

No electric wave.

No such hazard that mercury or lead enters the environment

No RF interference

The brightness and color temperature are all adjustable by dimmer Lighting more equably, more softly.

Lighting comes all around into light guide panel, more efficient dissipation.

Switched Standard Single Colour LED Panel 300mm x 1200mm - 372 x SMD 3528 LEDs per Panel:

* Demension size: 300*1200*16mm
* Lighting scope: 510*510mm

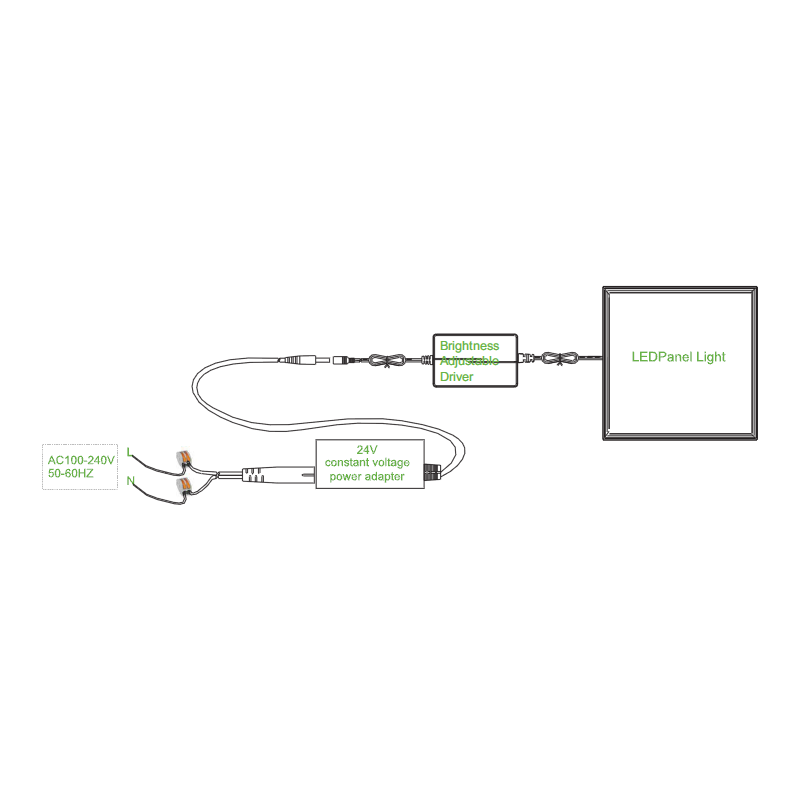

* Eorking voltage: DC 24V (using with 24V constant voltage driver)
* Lamp power:58W
* Working current: 2800mA
* Output luminous: 3300lm
* Space flux: 1400 lux/m

* Optional Fixed color temperatures:

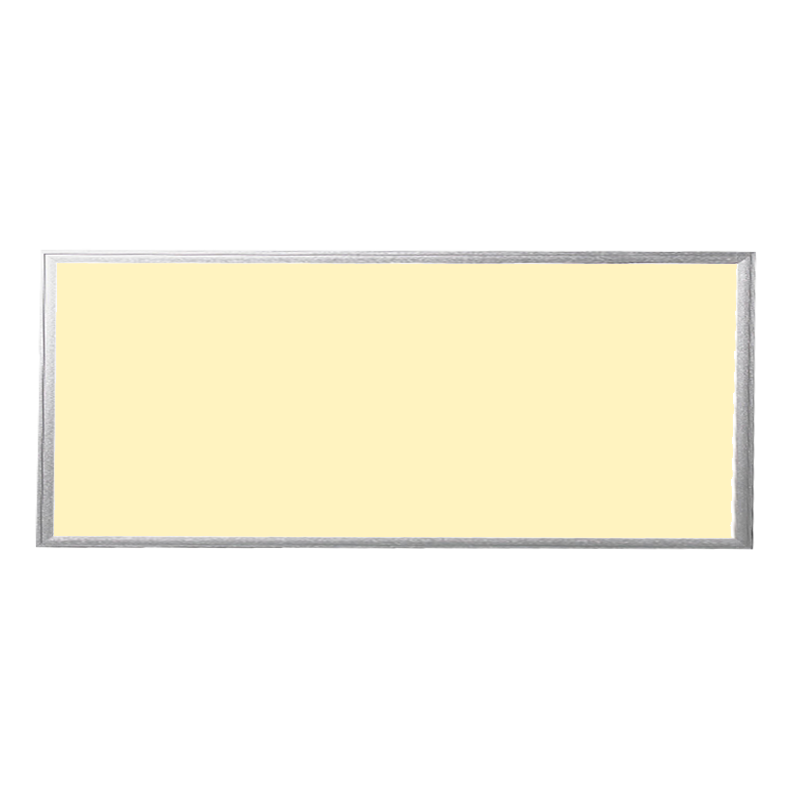

      Warm White 2700-3300k

      Natural White 3000-4000k

      Cool White 7000k

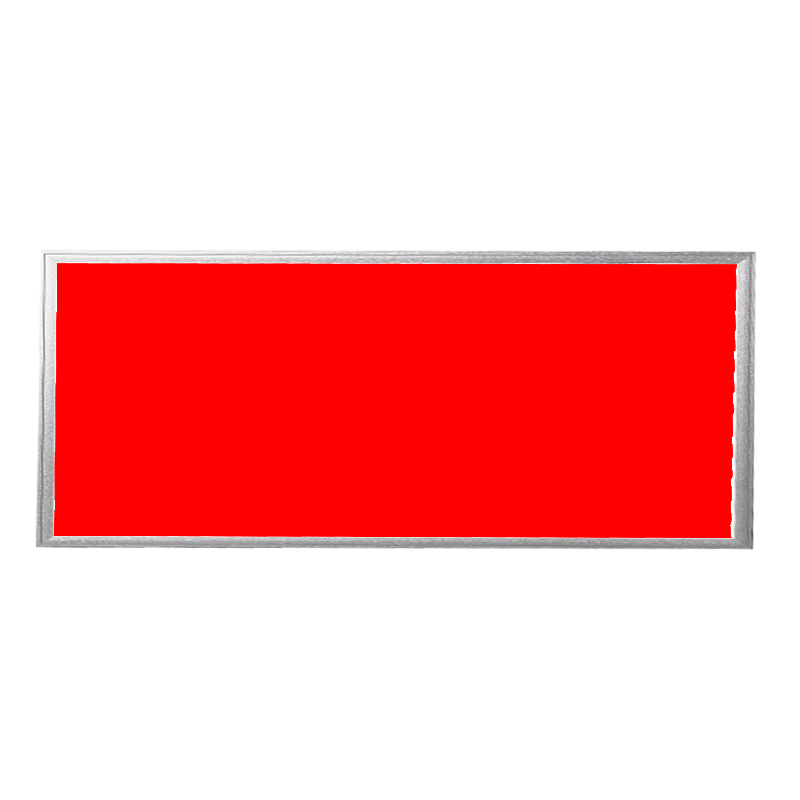

      Red

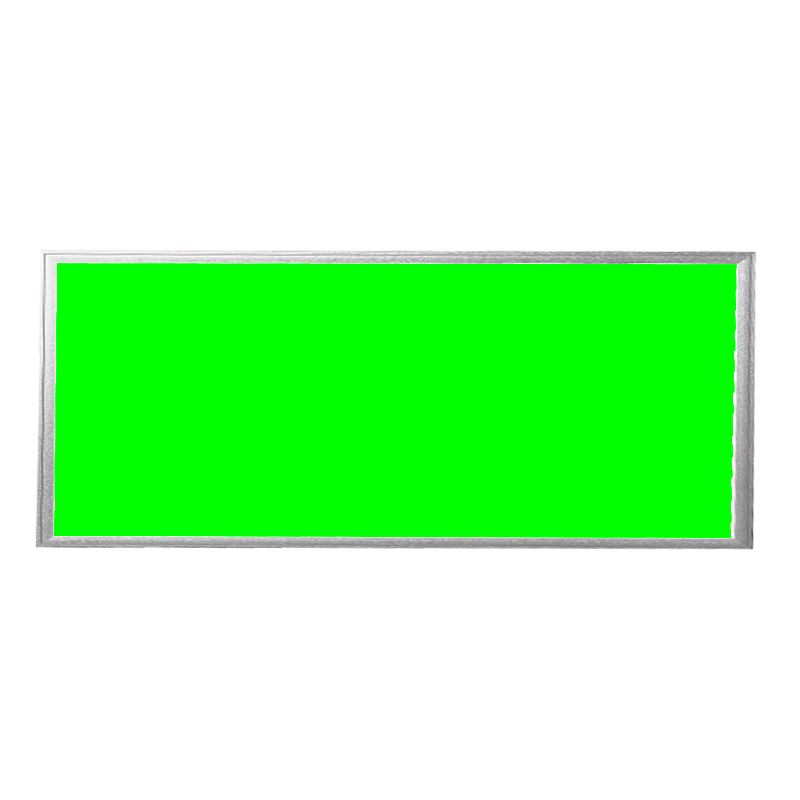

      Green

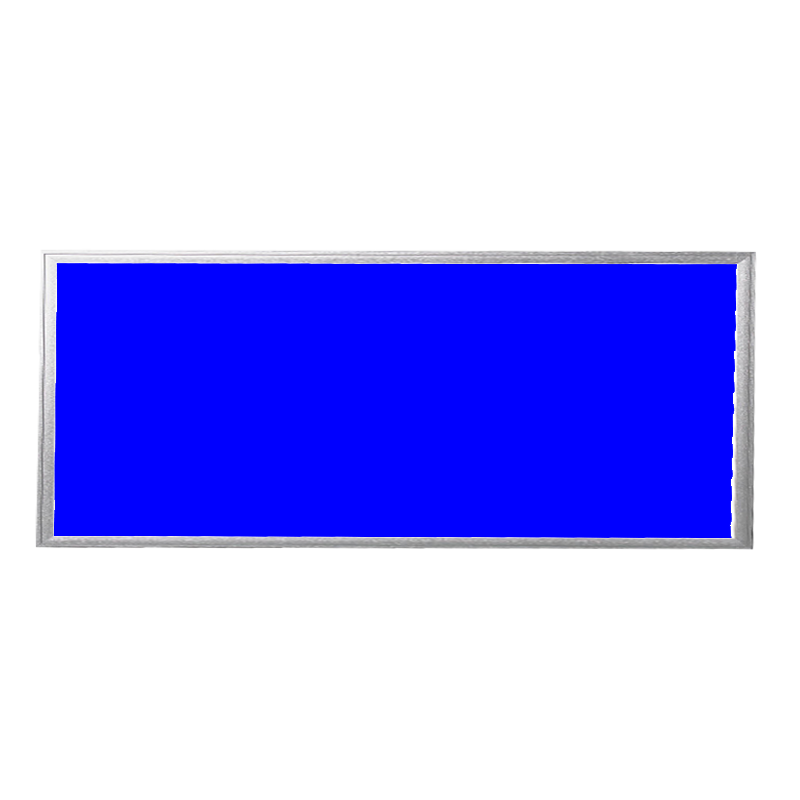

      Blue

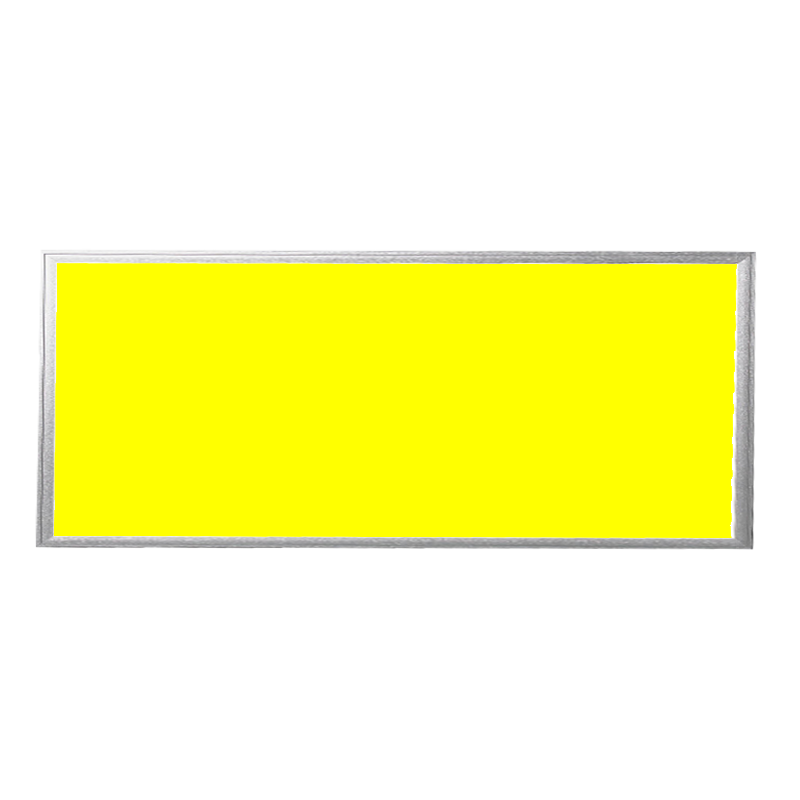

      Yellow

* Degree of homogeneity: >80%
* CRI >75
* Beam angle: 105deg;
* Raw material: Al6063 + optic PMMA
* LED light source: 672PCS high bright SMD3528 LEDs
* Lifespan: Over 50, 000hours
* IP/IK code: IP40/IK04

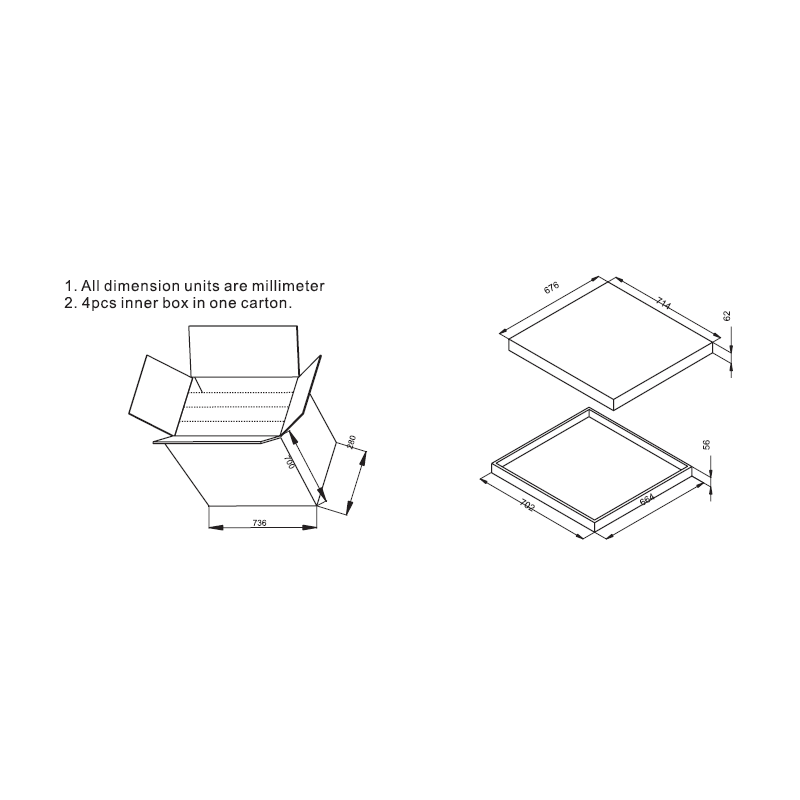

* Inner packing: 714*676*62mm /PCS
* External packing: 736*700*280mm/(4PCS in one big carton)
