AK-10F Akwil P10 10mm Pitch LED Display Flexible LED Display Panel Solutions 320mm x 160mm
search
  • AK-10F Akwil P10 10mm Pitch LED Display Flexible LED Display Panel Solutions 320mm x 160mm
  • AK-10F Akwil P10 10mm Pitch LED Display Flexible LED Display Panel Solutions 320mm x 160mm

AK-10F Akwil P10 10mm Pitch LED Display Flexible LED Display Panel Solutions 320mm x 160mm

£192.00
£163.20 Save 15%
Tax included
£136.00 Tax excl.

AK-10F Akwil P10 10mm Pitch LED Display Flexible LED Display Panel Solutions 320mm x 160mm

Akwil LED Flexi Display

Flexible LED Display Panel Solutions

Product customization

Don't forget to save your customization to be able to add to cart
  • 250 char. max
LED Display Use: Indoor LED Display
Display Pitch Size mm: 10mm Pitch
Minimum Display Viewing Distance m: 10m
LED Display Type: Flexi Modular Display
Quantity

Ask a Quote

AK-10F Akwil P10 10mm Pitch LED Display Flexible LED Display Panel Solutions 320mm x 160mm

Flexible LED Display Panel Solutions

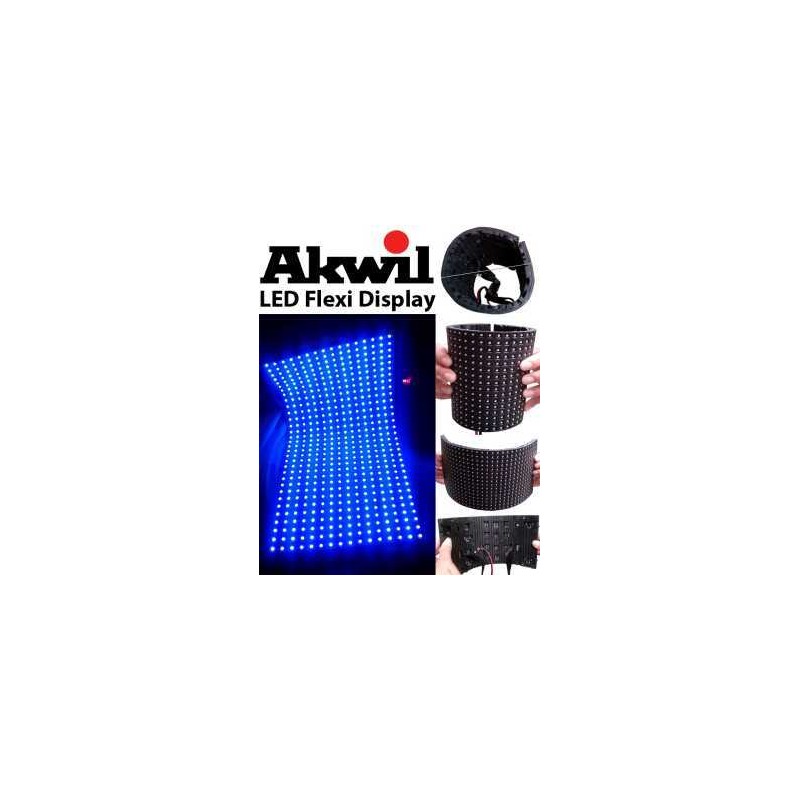

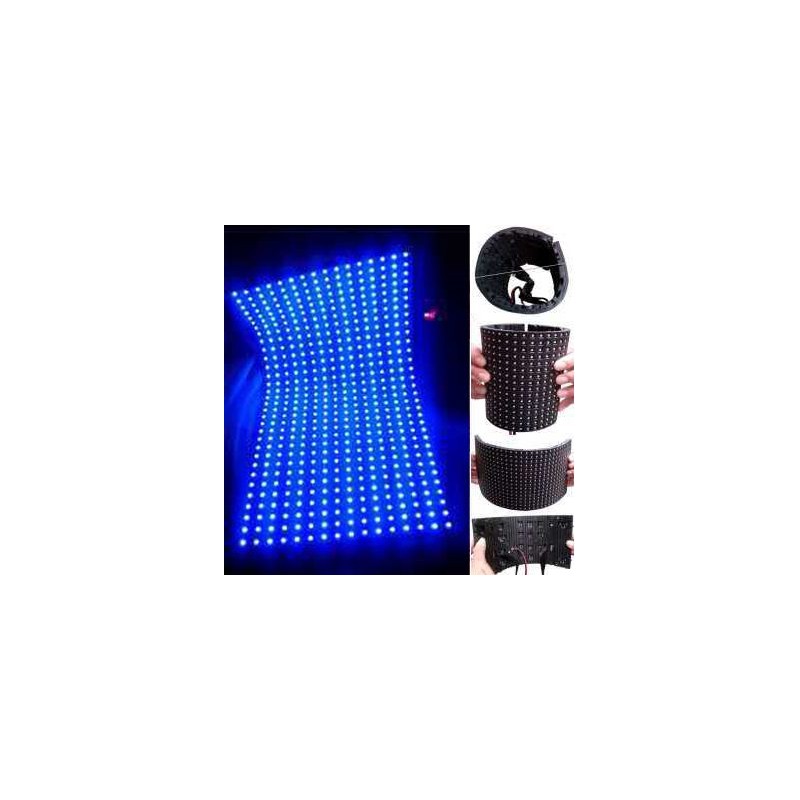

Akwil FLEXI LED Displays are high definition displays that are bendable and mouldable around almost any shape.

Its 8mm thick silicone rubber panel is so thin and light that it uses little space behind the display and dose not need a heavy support structure.

Akwil Flexi LED Video Displays offer the best curved creative freedom for fixed installation or rental application.

Above costs include LINSN Control Recievers and PSU's

Akwil-Curved-Bendable-LED-Flexi-Display-

Akwil Flexi Display AK-10F  10mm Pitch AK-6F 6mm Pitch
Pixel Pitch 10mm 6.67mm

Pixel Configuration

3in1 SMD 3528

 3in1 SMD 3528
Module Resolution 32 x 16 48 x 24
Module Size 512 1152
Pixel Density 10,000 pixels/m sq 25,000 pixels/m sq
Recomended Minimum Viewing Distance 10m 6m
Brightness >1500cd/m sq >2300cd/m sq
Colour Temperature 8000k-10000k 8000k-10000k
Contrast Ratio 5000:1 5000:1
Viewing Angle H:120º / V:120º H:120º / V:120º
Housing Material Silicone Rubber Silicone Rubber
Cabinet Weight 0.42kg 0.43kg
Colour 14bits x RGB 14bits x RGB
Greyscale (Linear) 12 bits 12 bits
Brightness Control 100 Levels 100 Levels
Video Frame Rate 60Hz 60Hz
Display Refresh Rate >1200-2400Hz >1200-2400Hz
Driving Method 1/8 1/8
Input Voltage (Nominal) AC 110V-240V AC 110V-240V
Input Power Frequency 50-60 Hz 50-60 Hz
Input Power Maximum 350W/m sq 750W/m sq
Input Power Average 175W/m sq 375W/m sq
Working Temperature -20ºC- 40ºC -20ºC- 40ºC
Storage Temperature -35ºC- 85ºC -35ºC- 85ºC
Working Humidity 10% - 95% 10% - 95%
Lifespan (50% Brightness) >70,000 hrs >70,000 hrs
Application Indoor Indoor
Maintenance Method Rear Rear
Price £ £340 / Panel £395 / Panel


Akwil AK-10F

Data sheet

Video Wall
Yes
Product Category Feature
LED Displays
Price Unit
Each
Condition
new
Availability
available for order
Brand
Akwil
Manufacturer
Akwil
LED Display Type
Flexi Modular LED Panel Display
LED Display Use
Indoor
LED Pitch Size mm
10mm
Minimum Recommended Viewing Distance m
10m
LED Type
RGB 3in1 SMD 3528
LED Module Height m
0.320
LED Module Width m
0.160
LED Module Height Number of Pixels px
16
LED Module Width Number of Pixels px
32
LED Display Brightness cd/m sq
≥1500cd/㎡

Specific References

EAN13
3412189618209
