Akwil AK-FL02-1000W Dali or DMX Dimmable 1000W LED Stadium Flood Light with Meanwell Drivers for high end sports flood lighting
£1,674.00
Tax included
£1,395.00 Tax excl.
Akwil AK-FL02-1000W
- Dimmable DMX, DALI or 0-10V LED Driver Options
- Lens Options are available for 10° / 30° / 60° / 120° / 150° x 60° / T3-VS beam angles.
- Unit is suitable for Stadiums, Docks, Large Buildings and Landscapes etc.
- Utilises a Highly Transparent PC Lens
- Soft and well distributed light output.

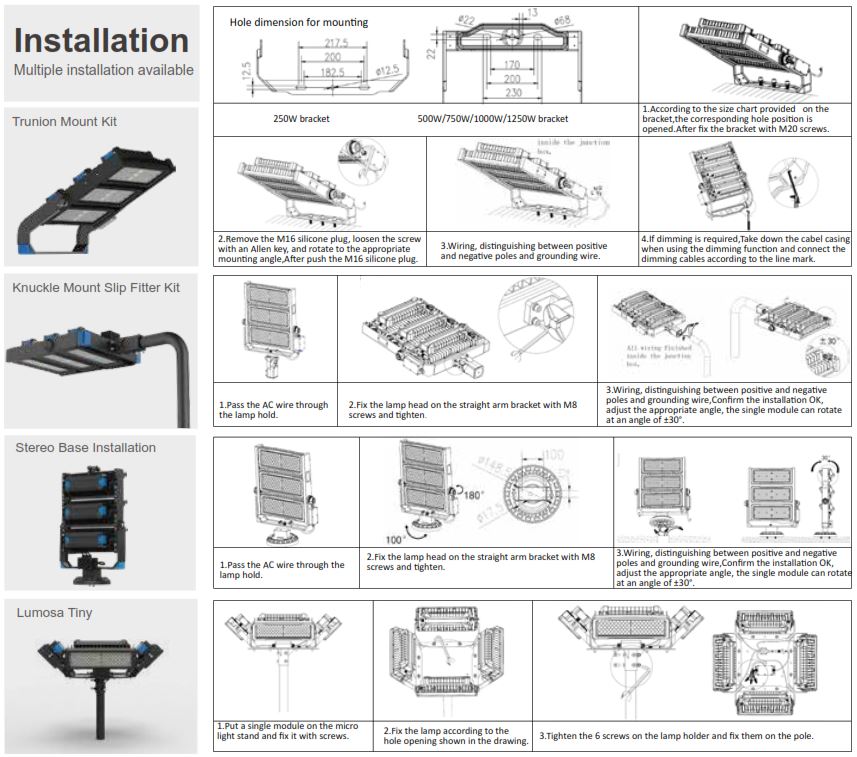

- Modular Design ensures quick and easy installation and maintenance.
Product customization
Don't forget to save your customization to be able to add to cartAkwil AK-FL02-1000W
Dimmable 1000W LED Stadium Flood Light for high end sports flood lighting
- Lens Options are available for 10° / 30° / 60° / 120° / 150° x 60° / T3-VS beam angles.
- Unit is suitable for Stadiums, Docks, Large Buildings and Landscapes etc.
- Utilises a Highly Transparent PC Lens
- Soft and well distributed light output.
- Modular Design ensures quick and easy installation and maintenance.
Specifications
Optical Data
| Wattage LED : | 1000W Philips/Samsung |
| Type Efficiency : | 130~150LM/W |
| Luminous Flux : | 130,000~150,000LM |
| CCT Options : | 3000K/4000K/5000K/5700K/6500K |
| Beam Angle Options: | 10°/30°/60°/120°/150°*60°/ T3-VS |
| CRI : | >70Ra |
| System Efficiency : | >90% |
Electrical Data
| Power Supply : | Meanwell driver |
| Input Voltage : | AC100-277V/AC240-480V |
| Power Frequency : | 50/60Hz |
| Output Voltage : | DC48V |
| Power Efficiency : | 92% |
| Power Factor Correction : | 0.95 |
|
Total Harmonic Distortion : |
<15% |
Additional Data
| IP Rating : | IP66 |
| Lifetime(L70 Standard) : | 50,000 hours |
| Heat Radiator : | Die-cast aluminum |
| Lens Material : | PC |
| Carton Dimensions : | 1022 x 617 x 211mm |
| Gross Weight : | 35kg |
|
Fixture Dimension : |
965.8*510*136.2mm |
AK-FL02-1000W
Data sheet
- Product Category Feature
- LED Lighting
- Price Unit
- Each
- Condition
- new
- Availability
- available for order
- Brand
- Akwil
- Manufacturer
- Akwil
- Wattage (W)
- 1000
- Lumens
- 100000
- Colour Render Index (CRI)
- 90
- Power Factor Correction PFC
- 0.95
Specific References
- EAN13
- 3423411457121
