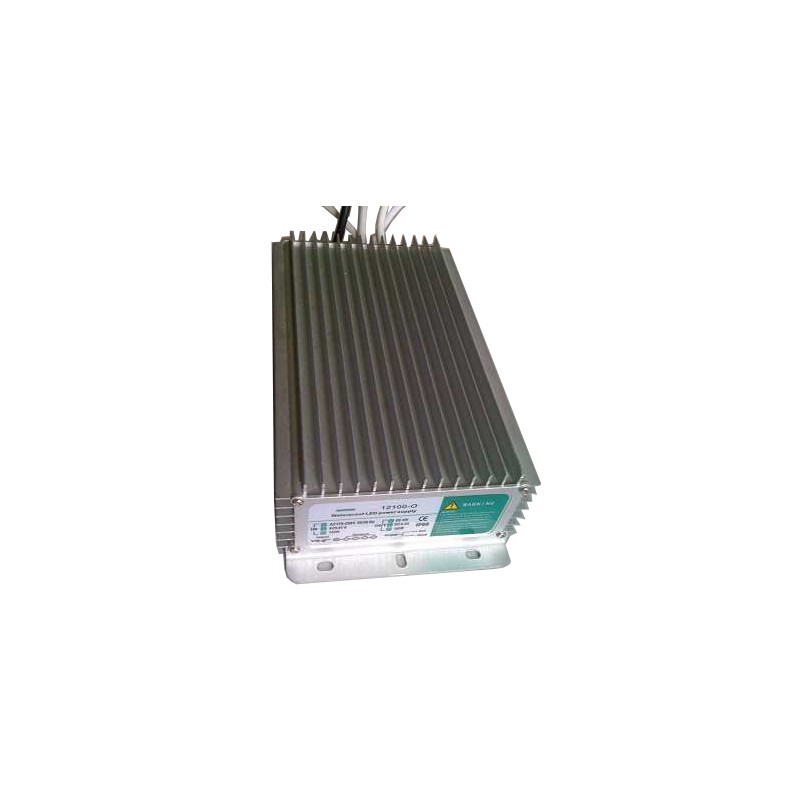

200W 24V Power Supply for feeding 3 x 5m LED Strips

200W 24V Power Supply for feeding 3 x 5m LED Strip

Protections: Short circuit/Overload/Over Temperature
IP66 / IP 66 design for indoor or outdoor installations
100% full load burn-in test
Suitable for LED lighting and sign applications
18 Months warranty
CE / EMC / ROHS

Environmental
Operating temperature: -20 to +45 º C
Storage temperature: -40 to +85 º C
Humidity (Non-Condensing): 5% to 95%
Cooling: Convection
Vibration Frequency: 50 to 60 Hz
MTBF: >1,8 00,000 Hours at full load and 25ºC
ambient conditions (MIL-HDBK-217F)
Input Voltage (VAC) 170-260V 170-260V
Input Frequency (Hz) 50/60 Hz 50/60 Hz
Output Voltage (VDC) 12VDC ± 0.5V 24VDC ± 0.5V
Output Current (constant) 16.6A max. 8.3 A max
Output Power (W) 200W Max. 200W Max
work Efficiencyˆ220V
Overload Protection 10% exceed is allowing
short circuit Protection Yes
Thermal Protection Yes
CE Safety Standard LVD Compliance to EN EN61347-1:2001 / EN61347-2-13.2001
EMI conduction & radiation
Compliance to EN55015,EN61547
EMS Harmonic Current Compliance to EN61000-3-2,-3
Safety & EMC
Classification of installation and use: Class 1
Dimension L: 228*W:120*H:60mm
N.W(g) 2600g/pcs
Packing PCS Standard Packing
Cable
Input of VDE H03VV-F 3C*0.75mm2
Others Output of VDE H03VV-F 2C*0.75mm2 ( 4 SET)
Housing Material Aluminium
