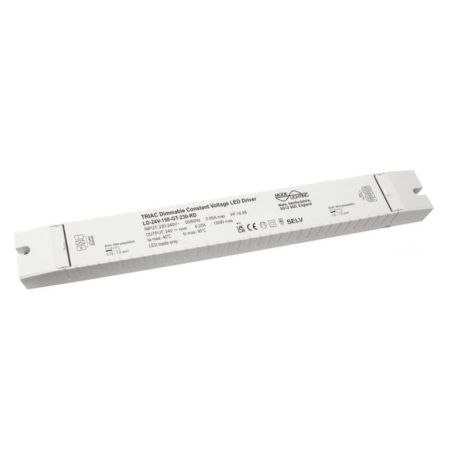

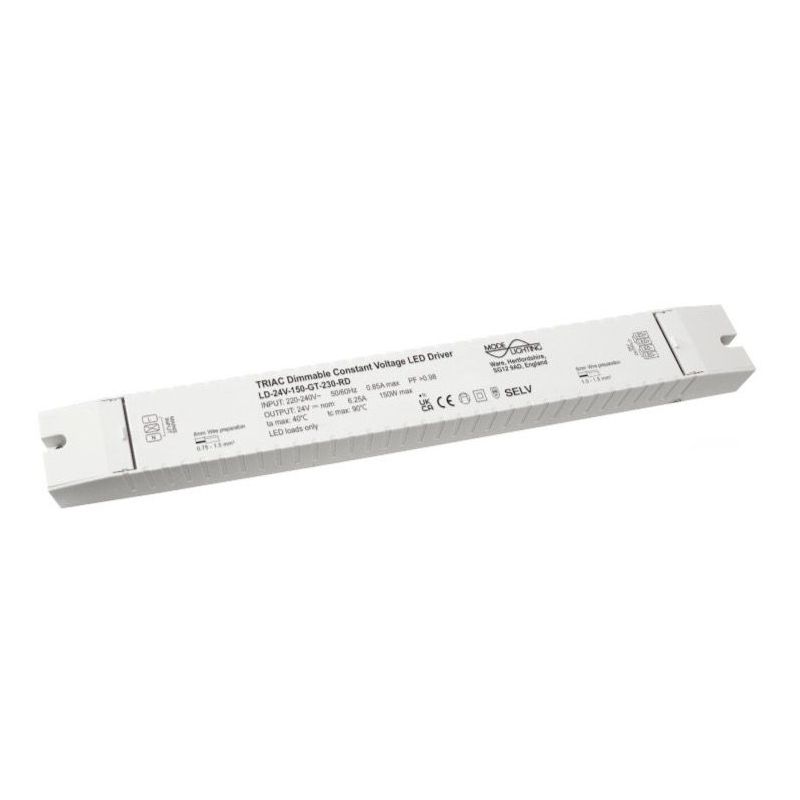

Mode Lighting Mega-150 LD-24-150-XT-230-RD Constant Voltage LED Driver - 24V DC 15-150W
search
  • Mode Lighting Mega-150 LD-24-150-XT-230-RD Constant Voltage LED Driver - 24V DC 15-150W

Mode Lighting Mega-150 Mains Dimmable 24V DC Constant Voltage 150W LED Driver LD-24V-150-GT-230-RD formerly LD-24-150-XT-230-RD

£140.40
Tax included
£117.00 Tax excl.

Mode Lighting Mega-150 Mains Dimmable

Constant Voltage LED Driver

LD-24V-150-GT-230-RD

(formerly LD-24-150-XT-230-RD) -

24V DC 15-150W

Quantity

Ask a Quote

Mode Lighting Mega-150 Mains Dimmable Constant Voltage LED Driver LD-24V-150-GT-230-RD (formerly LD-24-150-XT-230-RD) - 24V DC 15-150W

The mega-75 and mega-150 are part of the LEDdrive range from Mode Lighting. They are mains dimmable constant voltage power supply units designed to drive 24V constant voltage LEDs.

Key features

• 24V constant voltage output.
• Mains dimmable (Leading/Trailing Edge).
• Mega 75 - 24V DC 15-75W.
• Mega 150 - 24V DC 15-150W.
• High power factor.
• Short circuit and open circuit protection.
• High efficiency which ensures a cool operating temperature.
• Flame retardant moulded enclosure.
• Five year guarantee.
• CE Compliant to EC EMC and Low Voltage directives.
• Low audible noise throughout the dimming range.
• High Tolerance Internal Load Regulation ensures smooth and stable dimming of loads with matched dimming curve.

All LEDdrive power supplies are dimmable by both leading and trailing edge dimmers (subject to a minimum load). The mega-75 and mega-150 range provides a constant voltage of 24V with a parallel output current from 0.625A to 3.125A (mega-75) or 0.625A to 6.25A (mega-150).

LD-24V-150-GT-230-RD

Data sheet

Product Category Feature
LED Lighting
Price Unit
Each
Condition
new
Availability
in stock
Brand
Mode
Manufacturer
Mode
Wattage (W)
150

Specific References

EAN13
3424294761671
