*LAST AVAILABLE* JBL MSC1 Dual Monitor and Sub Controller with Room Calibration Mic and Software
£474.00
Tax included
£395.00 Tax excl.
JBL MSC1 Dual Monitor and Sub Controller with Room Calibration Mic and Software
The JBL MSC1 is a convenient desk-top sized monitor control system which allows the user to command all control room monitoring functions right from the mix position.
JBL MSC1 Dual Monitor and Sub Controller with Room Calibration Mic and Software
The JBL MSC1 is a convenient desk-top sized monitor control system which allows the user to command all control room monitoring functions right from the mix position. The MSC1 provides essential monitor strip features which are normally found in large mixing consoles and includes JBL's highly acclaimed RMC Room Mode Correction Technology.
The JBL MSC1 is a convenient desk-top sized monitor control system which allows the user to command all control room monitoring functions right from the mix position. The MSC1 provides essential monitor strip features which are normally found in large mixing consoles and includes JBL's highly acclaimed RMC Room Mode Correction Technology.
Monitor System Controller with Room Mode Correction
The MSC1 Monitor System Controller includes essential “Monitor Strip” features found in large mixing consoles so you can take control of all monitoring functions from your place at the mix position. Since the acoustics of the room can play a big part in what you hear, the MSC1 includes JBL's highly acclaimed RMC Room Mode Correction Technology to tune your monitor system to the room. The end-result is a calibrated reference environment in which your speakers work in harmony with your room to take the guesswork out of mixing.
Features
- Master Volume Control
- A/B Speaker Select
- A/B/C input Source Select
- Subwoofer Output with Level Control and Selectable Cross Over Frequencies
- Adjustable Low Frequency and High Frequency Speaker EQ
- Headphone Output with Volume Control
- Monitor Mute Control
- RMC On/Bypass Control
- Adjustable input gain with Signal Present and Clip indicator
- Can be used with any studio monitor system
Downloads
| Size | ||||
Manuals |
||||
 MSC1 Control Center Software Users Guide Mac |
12.1 MB | |||
| MSC1 Control Center Software Users Guide |
13.2 MB | |||
Brochures |
||||
| MSC1 Brochure |
605 KB | |||
Compliances |
||||
| LSR Series MSC1 Declaration of Conformity |
144 KB | |||
Software |
||||
 MSC1 Control Center Software Power PC Mac |
114 MB | |||
| MSC1 Control Center Software Intel Mac |
110 MB | |||
 MSC1 Control Center Software Windows |
136 MB | |||
Information Documents |
||||
 MSC1 Control Center Software Read Me |
15.8 KB | |||
| MSC1 Power Supply Versions |
158 KB | |||
Images |
||||

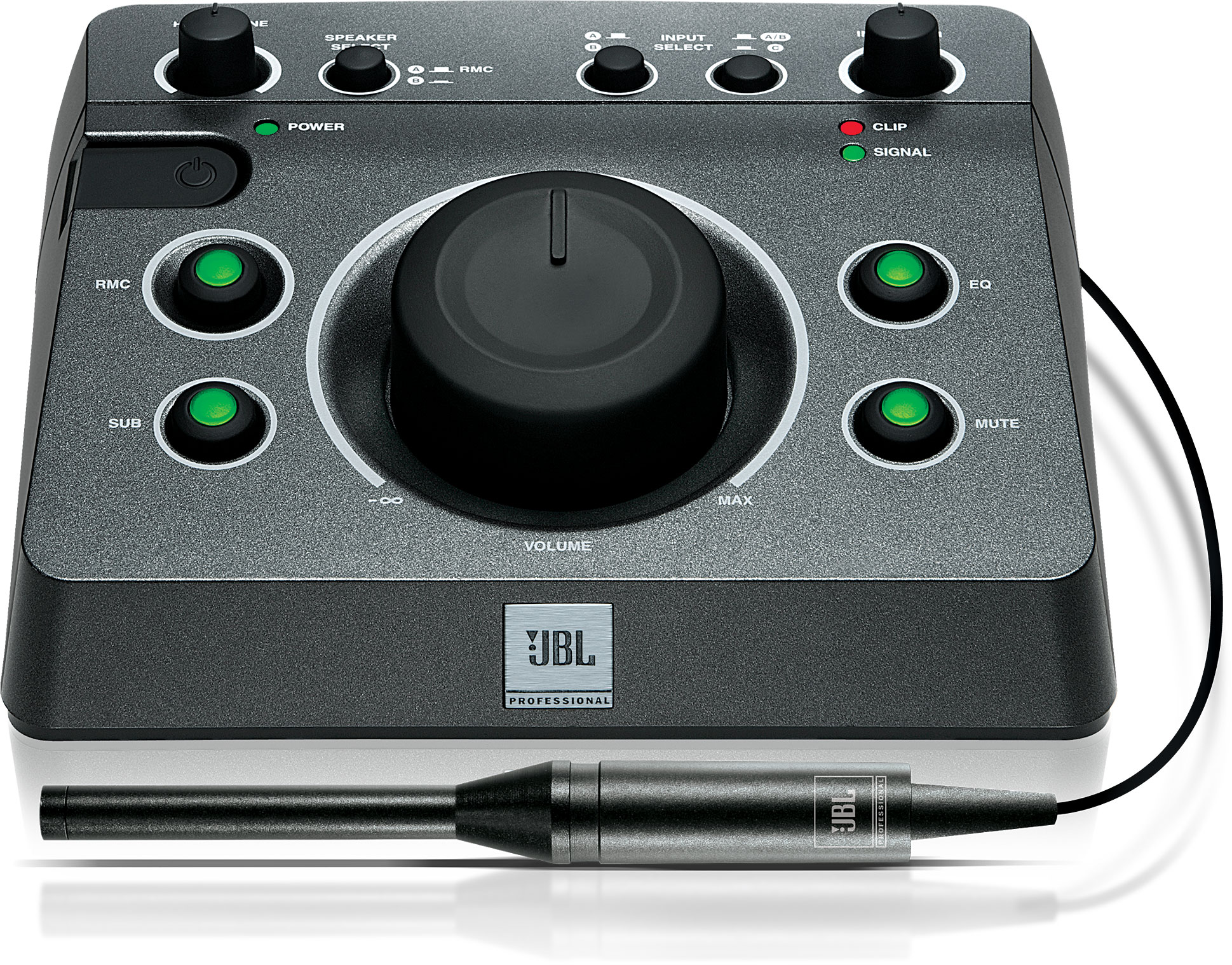

| MSC1 Hi Res Photo |
799 KB | |||

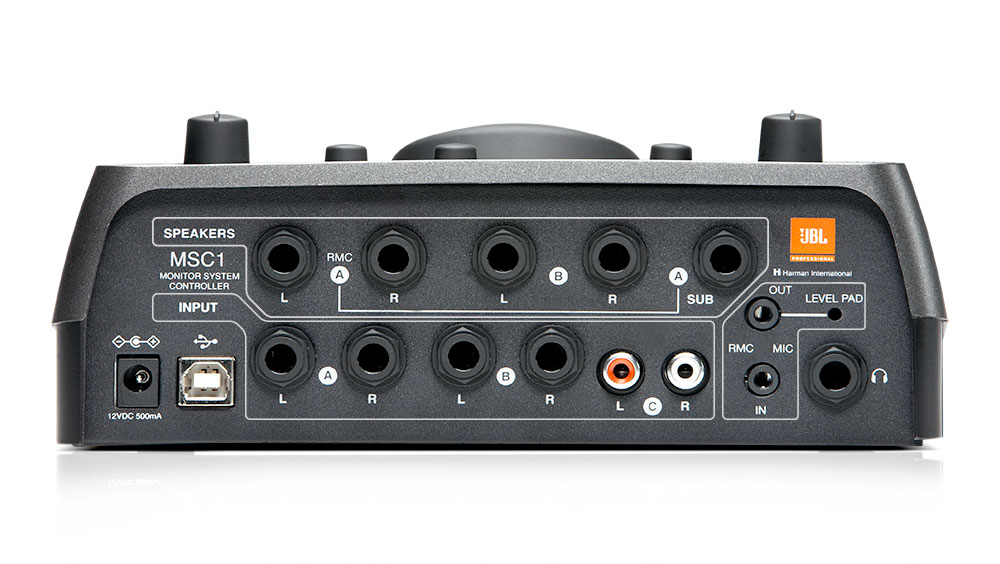

| Back View |
93.6 KB | |||

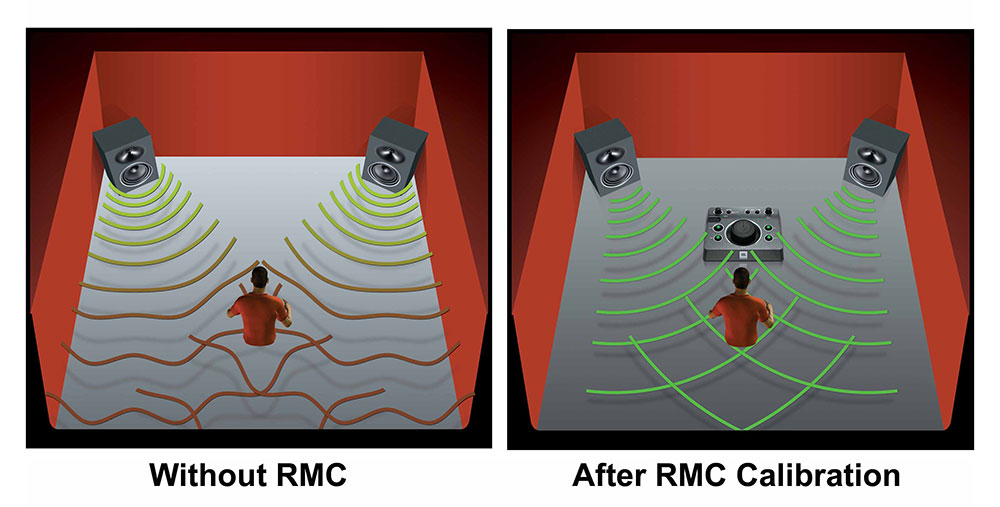

| RMC Before and After |
85.9 KB | |||

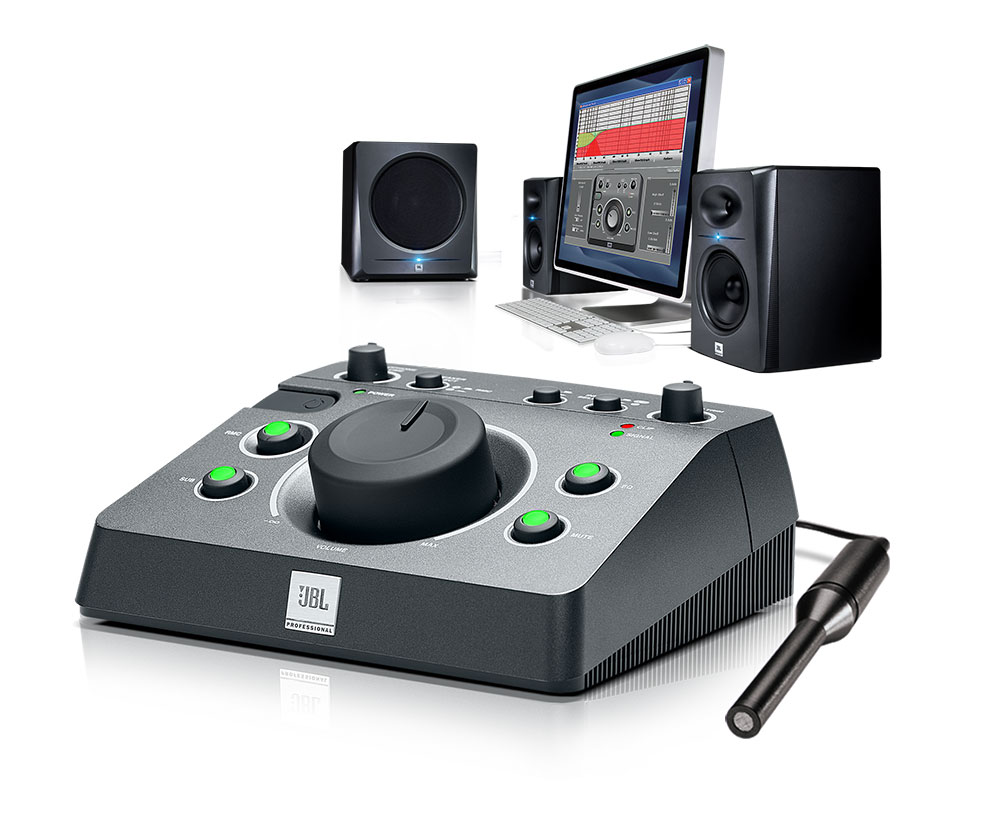

| MSC1 with speakers |
96.7 KB | |||
Owner's Manuals |
||||
| MSC1 Owner's Manual |
2.37 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Specifications
| S/N, Dynamic Range | 110 dB typicalA-weighted20 Hz - 20 kHz |
| Frequency Response | +0/-O.5 dB, 20 Hz - 20 kHz |
| THD+N | < 0.04% A/D/A, 20 Hz - 20 kHz |
| A/D, DA Converters | 24 Bit |
| Internal Processing | 48 Bit, 48 kHz |
| Maximum Input Level | +24 dBU 6.5mm (1/4" TRS Inputs)+4 dBu phono (RCA Inputs) |
| Maximum Output Before Clipping | +17 dBu |
| Power Requirements | 12 VDC, 0.5A |
| Dimensions W x D x H | 198 x 165 x 83 mm(7.8 x 6.5 x 3.25 in) |
| Inputs A, B / C | 4 Balanced 1/4" TRS2 Unbalanced RCA |
| Outputs A, B and Subwoofer | 5 Balanced 1/4" TRS |
| Headphone | Stereo 1/4" |
| RMC Mic IN / OUT | 1/8" TRS |
| Computer Interface | USB 2.0 |
| LF EQ Frequency | 20 Hz to 1.1 kHz Shelf32 options |
| LF EQ Gain | +/- 3 dB in .25 dB increments |
| HF EQ Frequency | 2.5 kHz to 17 kHz Shelf28 options |
| HF EQ Gain | +/- 3 dB in .25 dB increments |
| Level | +/- 10 dB from nominal in .5 dB increments |
| Selectable Crossover Frequencies | 60 Hz, 80 Hz, 120 Hz |
| Polarity | 0 degrees / 180 degrees |
Videos
Support/FAQs
JBL MSC1
Specific References
- EAN13
- 0050036903653
