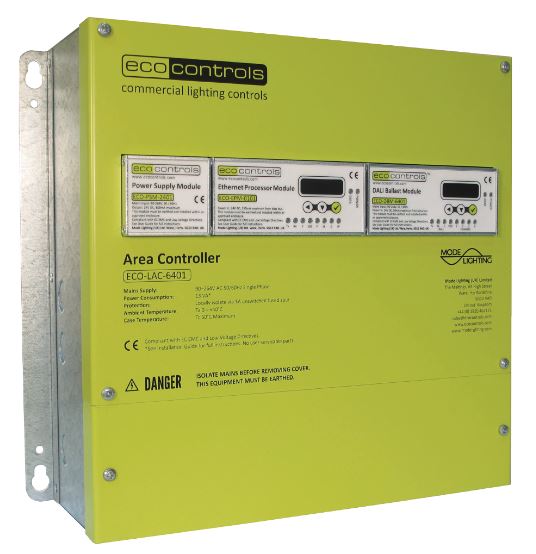

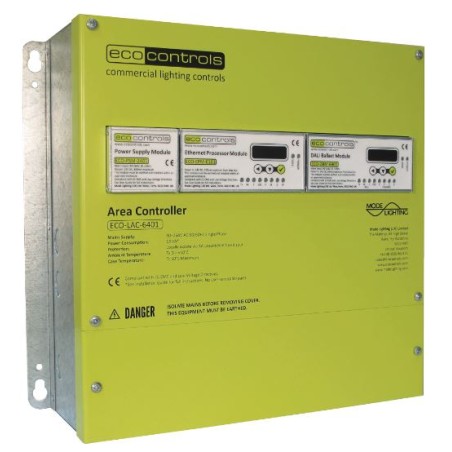

ECO-LAC-6401 Area Controller (Area Controller - One DALI Universe, Ethernet Processor & PSU)
An installation is divided into logical areas which may be dictated by individual tenancies or the physical layout and practicalities of the installation.
Each area is managed by an Area Controller which in turn are connected together via a dedicated TCP/IP backbone or the shared building IT network.
The M-BUS provides the means of communication between the Area Controller to DALI light Control Panels and Control Devices.
A single DALI Universe is provided within each Area Controller as the primary means of luminare control which is further complimented with four additional channels of individually configurable and addressable I/O.
RS-232 and Ethernet facilitate integration with other building control systems.
- Infinite number of Area Controllers
- Backbone communication utilising a dedicated TCP/IP building services network or shared Ethernet
- RS-232 and Ethernet interface with other building control systems
- M-BUS to a range of Dimming and Switching Lighting Controllers
- M-BUS to a range of field based Control Devices such as MultiSensors, Switch Input Units, LCD and Multi-button Control Plates, Blinds Controllers and RS-232 Audio Visual Interface
- Integral 250 mA DALI standard PSU
- DALI short circuit and overload protection
- Configurable I/O provides connections for Letting Agent Switch, Emergency Light Test, Load Shedding and External Photocell
- Installer pre-commission testing via the on-board display and keypad
- Integral Astronomical Real Time Clock providing location based dusk to dawn settings
- Non-volatile flash memory
- Ultra compact form factor 340 x 300mm
- Quick non-intrusive installation via external keyhole fixings
- 2 year warranty
