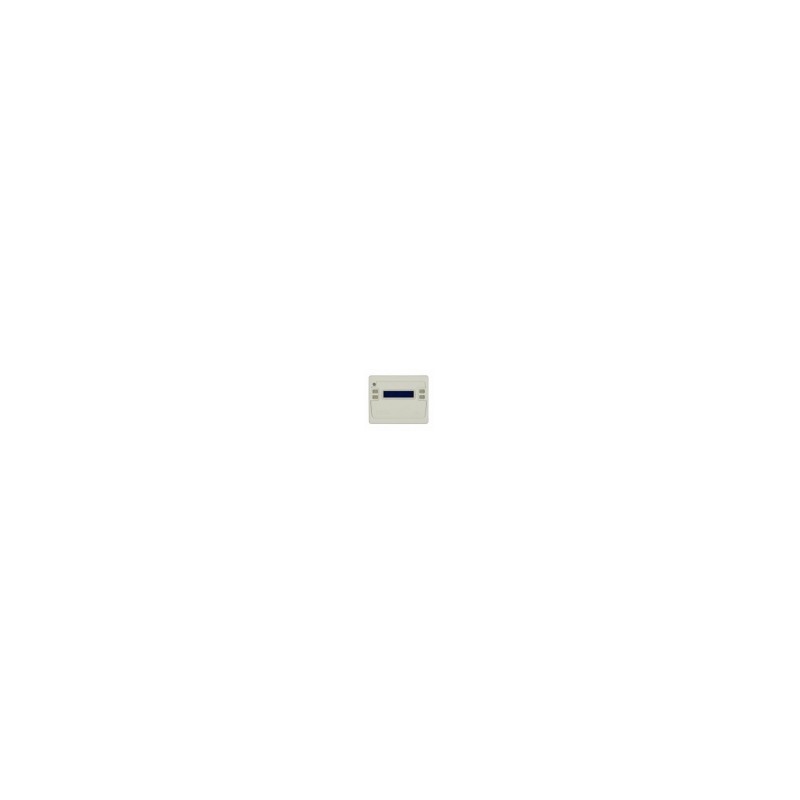

CDR-1W Remote Music Source / Volume Select Panel in White (DCM-1)

CDR-1W Remote Music Source / Volume Select Panel in White (DCM-1)

​
The CDR-1W and CDR-1B are new surface mount versions of the CDR-1 surface mount control panel for the DCM-1, now available in White or Black finish.

The CDR-1 (surface-mount) and CDR-1F (flush-mount) are remote control panels for use with the Cloud DCM-1 Digital Control Mixer. The CDR-1 and CDR-1F are fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one of the DCM-1's zones, it provides the user and installer with more convenient and practical control of system in addition to the DCM-1's front panel.

A zone may have one CDR1 (or CDR1F), more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

Product Features:

• Enables remote control of Cloud's DCM-1 Digitally Controlled Mixer
• Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
• Can be interconnected using a wide choice of wiring topologies
• Choice of two mounting styles to suit installation
• Backlit 2-row x 16 character dot matrix alphanumeric display
• User accessible functions:
• Source selection
• Level control
• Group enable/disable
• Engineer mode functions (password enabled):
• Local zone EQ adjustment
• Installer mode (Enabled by internal jumper):
• Zone assignment
• Password setting
• Display adjustment
• Inactivity time (time for which display backlight remains lit after a button is pressed)
