Dual Handheld Microphone System Tuneable UHF
search
  • Dual Handheld Microphone System Tuneable UHF

Dual Handheld Microphone System Tuneable UHF

£240.00
Tax included
£200.00 Tax excl.

Dual Handheld Microphone System Tuneable UHF

  • Dual channel receiver
  • 2 x handheld transmitters
  • 4 x AA batteries
  • 2 x UHF antennas
  • 2 x antenna leads
  • 2 x rack-mounting ears
  • Mains power adaptor
  • 6.3mm jack to jack lead
Quantity

Ask a Quote

Dual Handheld Microphone System Tuneable UHF

Tuneable Dual UHF Handheld Microphone System

In the Box

  • Dual channel receiver
  • 2 x handheld transmitters
  • 4 x AA batteries
  • 2 x UHF antennas
  • 2 x antenna leads
  • 2 x rack-mounting ears
  • Mains power adaptor
  • 6.3mm jack to jack lead

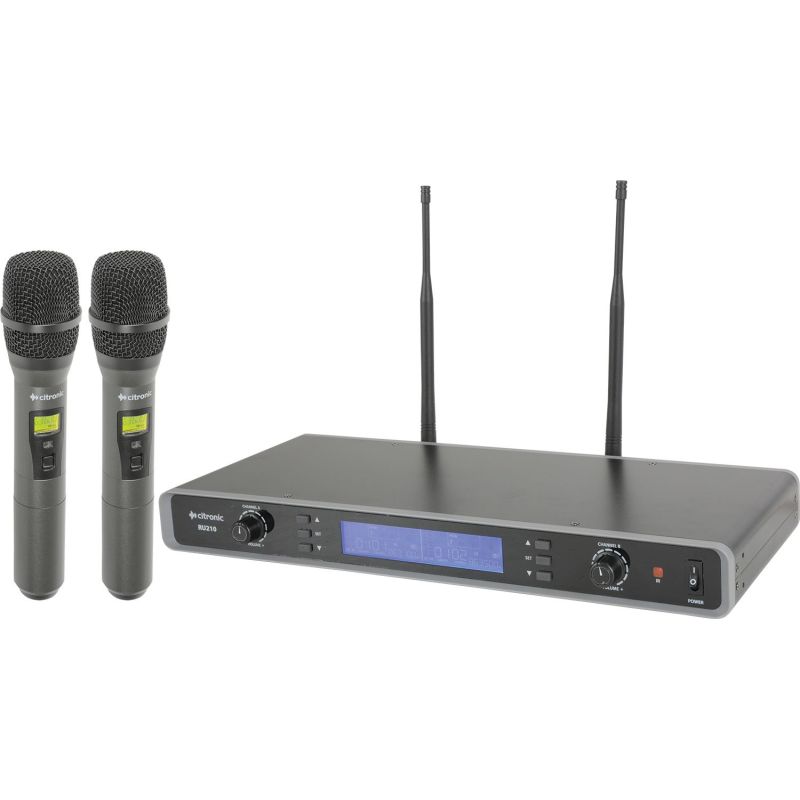

Dual channel PLL tuneable UHF wireless system with 2 handheld transmitters. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronised to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.

  • PLL tunable with 81 UHF frequencies
  • Licence free operation in UK & EU
  • Pilot tone & mute circuit for stable signal
  • Rack-mounting accessories included
  • Supplied with mains adaptor and 4 x AA batteries
  • Power supply12-18Vdc, 500mA (mains adaptor included)
  • Carrier frequencies863 - 865MHz (81 selectable frequencies)
  • Range60m
  • Batteries4 x AA (2 per transmitter - included)
  • Signal to noise ratio>105dB
  • THD<0.5% @ 1KHz
  • Frequency response50Hz-18KHz ±1 dB
  • Image rejection>85dB
  • Output impedance2.2k Ohms
  • Output level400mV (balanced), 200mV (unbalanced)
  • Dimensions : receiver44 x 409 x 190mm
  • Weight : receiver1.37kg
  • Dimensions : transmitter265 x 49mmØ
  • Weight : transmitter330g (no battery)

RU210
