Cloud MA80 80W Mini Amplifier 4 Ohm Output Priority Microphone Input with EQ and Input Gain

Cloud MA80 80W Mini Amplifier 4 Ohm Output Priority Microphone Input with EQ and Input Gain

1 x 80W 4Ω Output (<1% THD @ Full Output),
Line 1 / 2 Output Level Control + Priority,
Microphone Input with EQ and Input Gain,
Music EQ,
Microphone Output Level Control + Priority,
Music Mute,
12-24V Power Supply Inc. Variants: EK, AUS, NA

80W Mini Amplifier

MA80

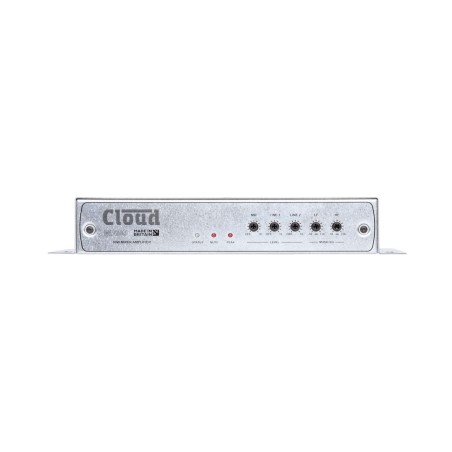

The MA80 is a compact Mini Amplifier providing 80W Mono Output at 4Ω (low impedance). Designed for integration into commercial audio installations and AV systems where de-centralisation of the system component is an advantage. It is intended as an "install and forget" component and is small enough to be fitted into a wall or ceiling void, or directly adjacent to a projector, flat screen or loudspeaker.

ENERGY STAR Tested & Certified providing extensive power saving and energy consumption saving features such as Auto Power Down (APD) and rapid waking.

Fitted with a Microphone Input with EQ and input gain adjustment, a further two line inputs, an RL-1 remote wall plate connection, music mute connection and dip switch settings providing Line 1 priority and mic priority switching in addition to switching on/off of the RL-1 functionality.

The MA80 is powered internally via 100-240V SMPS.

There is an optional 20mm Flexible Conduit Kit available (Warepart: CA947034) for fire protection.
