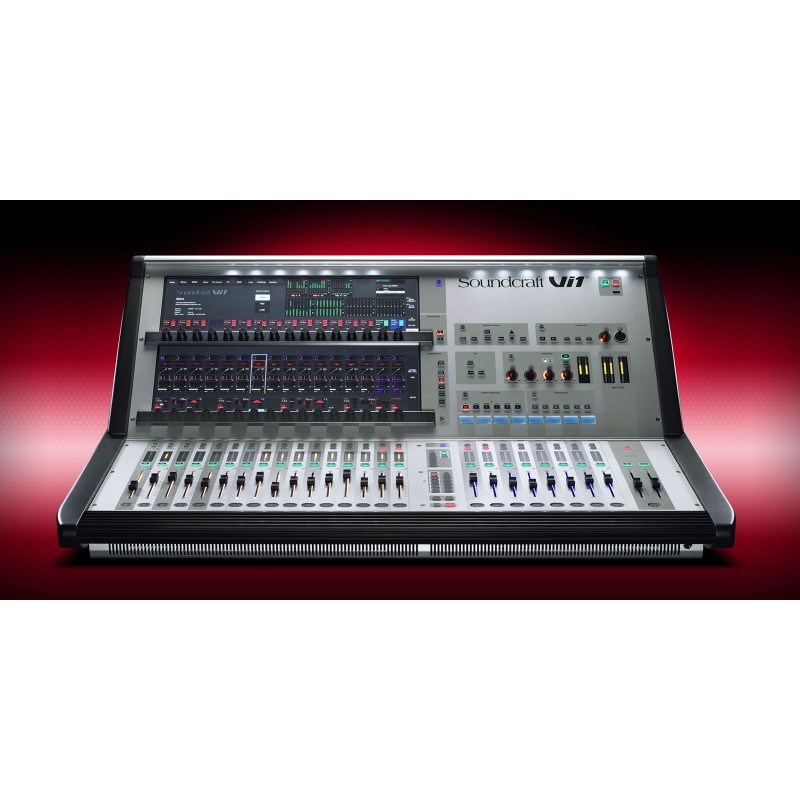

Soundcraft Vi1

Soundcraft Vi1

With the Soundcraft Vi Series now firmly established as a firm favourite digital desk on both the touring, broadcast and installed sound scenes, Soundcraft have taken this amazing platform to another, more affordable level with the Vi1 console.

A complete standalone console package with 32 channels of analogue input to 27 analogue outputs, plus 6 digital inputs, 4 Stereo FX Returns and 6 digital outputs in one chassis. As standard, Input to mix capacity is 46chs, but by adding a stagebox, simultaneous channel count increases to 64. Channels are routable to 24 multifunction busses, plus LR and Mono Mix busses. Up to 8 of the busses can be configured as Matrix mixes, each with up to 16 sources.

The surface is just over a metre wide, and includes 16 motorised channel faders with fixed and user-definable layers, 8 output/VCA faders and 2 master faders.

What's really cool about the Vi1 though, is the widescreen Vistonics interface, which will be instantly familiar to anyone who's driven a Vi6 or Vi4, as well as retaining the same 'walk-up' user-friendliness of the other Vi consoles. This new development displays all parameters for 16 channels side by side, on a single 22" Vistonics touch screen. The upper half of the screen handles the Output section control as well as Cue List or Menu displays. Parameter control is via two rows of 16 rotary encoders. Exactly the same channel functionality as the Vi6 and Vi4 is available here, along with all the same core snapshot, talkback and monitoring facilities.

Naturally, the Vi1 inherits many of the facilities of its larger siblings, including Soundcraft FaderGlow, 4 stereo Lexicon effects engines, BSS Audio graphic EQs on all output busses, and integral dynamics on all channels. The desk is also compatible with Vi2, 4 and 6 show files.

As you?d expect, the price of the Vi1 is extremely attractive, which is sure to make it a clear winner with engineers and sound companies.

Features

• 32 mic/line inputs
• 2 pairs AES/EBU inputs (=4 channels)
• 1 pair SPDIF inputs (= 2 channels)
• 1 Talkback Mic input
• 32 line outputs
• 2 pairs AES/EBU outputs (= 4 channels)
• 1 pair SPDIF outputs (=2 channels)
• 16 input faders, switchable in 4 fixed layers to access 64 inputs
• 5 additional User Definable layers
• Widescreen Vistonics channel strip interface
• Fader tray contains (per input channel) motorised fader, Mute, Solo, Isolate and F (user defined) switches.
• Input level and gain reduction meter located above each fader.
• Input faders can be switched to control all 24 Grp/Aux/Matrix Outputs, or can control an individual Aux send mix, using the switchable ?Follow Solo? function.
• 8 assignable Output faders, plus 2 dedicated LR and C Master faders, plus 16 assignable rotary Output faders on Vistonics screen.
• Output faders can be assigned to the VCA (control group) masters.
• Upper section of widescreen Vistonics interface for Output processing control, also functions as complete meter overview display for all Inputs & Outputs, plus snapshot Cue List and diagnostics info display.

Specifications

Frequency Response
Local Mic input to Line output +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz

T.H.D. & Noise
(22Hz-22kHz)
Local Mic In (min gain) to Local Line Out <0.003% @ 1kHz
Local Mic In (max gain) to Local Line Out <0.020% @ 1kHz
Mic Input E.I.N. <-125dBu (150? source), 22Hz-22kHz bandwidth, unweighted
Residual Noise -95dBu, Local line output; no inputs routed, Mix fader @0dB
CMRR 80dB @ 1kHz, Local Mic input
Sampling Frequency 48kHz

Latency
Local Mic Input to Local Line output < 2ms @48kHz
AES/EBU Input Sample Rate 32?108kHz (with SRC enabled)
DSP Resolution 40-bit floating point

Internal Clock
Accuracy < +/- 50ppm
Jitter < +/- 5ns
External Sync BNC Wordclock

Input & Output Levels
Mic Inputs +25dBu max
Line Outputs +22dBu max
Nominal Operating Level 0dBu (-18dBFS)

Input & Output Impedances
Mic Inputs 2k7?
All other analogue Inputs >10k?
Line Ouptuts <75?
AES/EBU Outputs 110?
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Channel HP Filter 20Hz-600Hz, 18dB per octave
Channel LP Filter 1kHz-20kHz, 18dB per octave

EQ (Inputs and Bus Outputs)
HF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
LF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 11-segment LED bargraphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range 90-264V, 47-63Hz, autoranging

Mains Power Consumption
Control Surface 100W
Internal Mass Storage 4GB Compact Flash Card

Temperature/Humidity Range
Operating Temperature Range 0?C ? 45?C (32?F ? 113?F)
Relative Humidity 0% ? 90%, non-condensing Ta=40?C (104?F)
Storage Temperature Range -20?C ? 60?C (-4?F ? 140?F)
