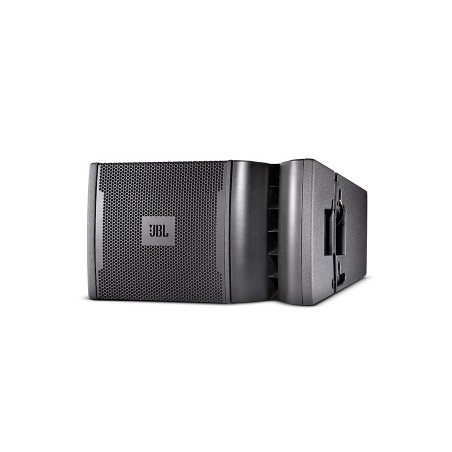

JBL VRX932LA-1

VRX932LA-1

12 in. Two-Way Line Array Loudspeaker System
The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.

FEATURES:

• JBL’s exclusive neodymium magnet Differential Drive woofer for high-power capacity and light-weight.
• VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
• Constant Curvature waveguide for unprecedented array coherence.
• Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
• Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
• Array Configuration Selector permits “array shading” in passive mode.

SPECIFICATIONS:

• Power Rating - 800 W / 1600 W / 3200 W
• Frequency Range - 57 Hz - 20 kHz (-10 dB)
• Dimensions (H x W x D) - 343 mm x 597 mm x 376 mm (13.5 in x 23.5 in x 14.8 in)
• Frequency Response - 75 Hz - 20 Hz (+/-3db)
• Coverage Pattern - 100 x 15 nominal
• Crossover Modes - Bi-amp / passive, externally switchable
• Crossover Frequency - 132 dB SPL peak 1.2 kHz
• System Maximum SPL - Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak
• System Sensitivity (1w @ 1m - Passive: 95 dB SPL, Bi-amp LF: 95 dB SPL, Bi-amp HF: 114 dB SPL
• LF Driver - 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
• HF Driver - 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
• Nominal Impedance - Passive: 8 ohm, Bi-amp LF: 8 ohm, Bi-amp HF: 8 ohm
• Active Tunings - Tunings available at www.jblpro.com
• Enclosure - 18 mm, 11-ply birch plywood
• Suspension / Mounting - Optional VRX932LA-AF line array frame kit
• Finish - Black DuraFlex finish
• Grille - Power coated, black, 16-guage perforated steel with with acoustically transparent foam
• Input Connectors - Neutrik Speakon NL-4 (x2)
• Net Weight - 21 kg (46 lb)
• Optional Accessories - VRX932LA-AF: Suspension array frame, SS2-BK: Tripod speaker stand, SS3-BK: Satellite speaker pole, 41 in (1041 mm), SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
